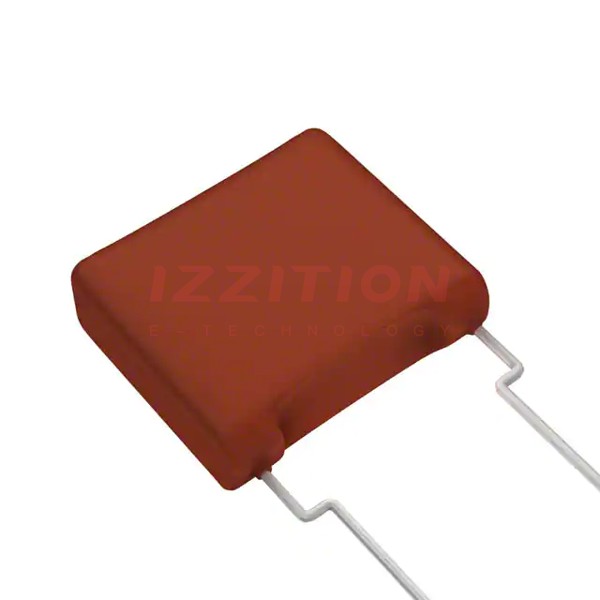

| Part Number | ECW-FA2J184JB | ECW-FA2J184JQ | ECW-FA2J684JB | ECW-FA2J185JB | ECW-FA2J104JB | ECW-FA2J124JB | ECW-FA2J154JB | ECW-FA2J184J | ECW-FA2J184J4 | ECW-FA2J184J5 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 0.18 µF | 0.18 µF | 0.68 µF | 1.8 µF | 0.1 µF | 0.12 µF | 0.15 µF | 0.18 µF | 0.18 µF | 0.18 µF |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | - | - | - | - | - | - | - | 141V | - | - |
| Voltage Rating - DC | 630V | 630V | 630V | 630V | 630V | 630V | 630V | 630V | 630V | 630V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.717" L x 0.256" W (18.20mm x 6.50mm) | 0.717" L x 0.256" W (18.20mm x 6.50mm) | 0.717" L x 0.472" W (18.20mm x 12.00mm) | 1.024" L x 0.583" W (26.00mm x 14.80mm) | 0.709" L x 0.205" W (18.00mm x 5.20mm) | 0.717" L x 0.217" W (18.20mm x 5.50mm) | 0.717" L x 0.236" W (18.20mm x 6.00mm) | 0.717" L x 0.256" W (18.20mm x 6.50mm) | 0.717" L x 0.256" W (18.20mm x 6.50mm) | 0.717" L x 0.256" W (18.20mm x 6.50mm) |
| Height - Seated (Max) | 0.657" (16.70mm) | 0.657" (16.70mm) | 0.870" (22.10mm) | 0.976" (24.80mm) | 0.606" (15.40mm) | 0.622" (15.80mm) | 0.638" (16.20mm) | 0.461" (11.70mm) | 0.461" (11.70mm) | 0.461" (11.70mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.295" (7.50mm) | 0.591" (15.00mm) | 0.295" (7.50mm) | 0.591" (15.00mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - | - | - |
