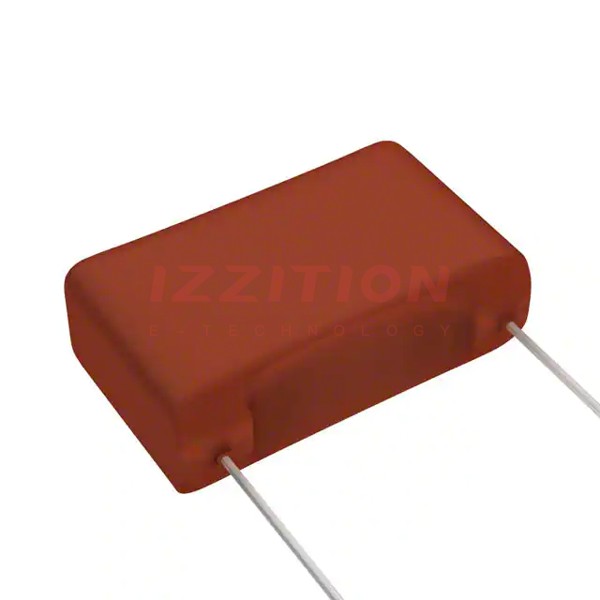

| Part Number | ECW-FA2J154J4 | ECW-FA2J154JB | ECW-FA2J154J5 | ECW-FA2J154JQ | ECW-FA2J184J4 | ECW-FA2J104J4 | ECW-FA2J124J4 | ECW-FA2J154J |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 0.15 µF | 0.15 µF | 0.15 µF | 0.15 µF | 0.18 µF | 0.1 µF | 0.12 µF | 0.15 µF |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | - | - | - | - | - | - | - | 141V |
| Voltage Rating - DC | 630V | 630V | 630V | 630V | 630V | 630V | 630V | 630V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.717" L x 0.236" W (18.20mm x 6.00mm) | 0.717" L x 0.236" W (18.20mm x 6.00mm) | 0.717" L x 0.236" W (18.20mm x 6.00mm) | 0.717" L x 0.236" W (18.20mm x 6.00mm) | 0.717" L x 0.256" W (18.20mm x 6.50mm) | 0.709" L x 0.205" W (18.00mm x 5.20mm) | 0.717" L x 0.217" W (18.20mm x 5.50mm) | 0.717" L x 0.236" W (18.20mm x 6.00mm) |
| Height - Seated (Max) | 0.441" (11.20mm) | 0.638" (16.20mm) | 0.441" (11.20mm) | 0.638" (16.20mm) | 0.461" (11.70mm) | 0.409" (10.40mm) | 0.425" (10.80mm) | 0.441" (11.20mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.591" (15.00mm) | 0.295" (7.50mm) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - |
