ECW-FA2J124J4
  • Share:

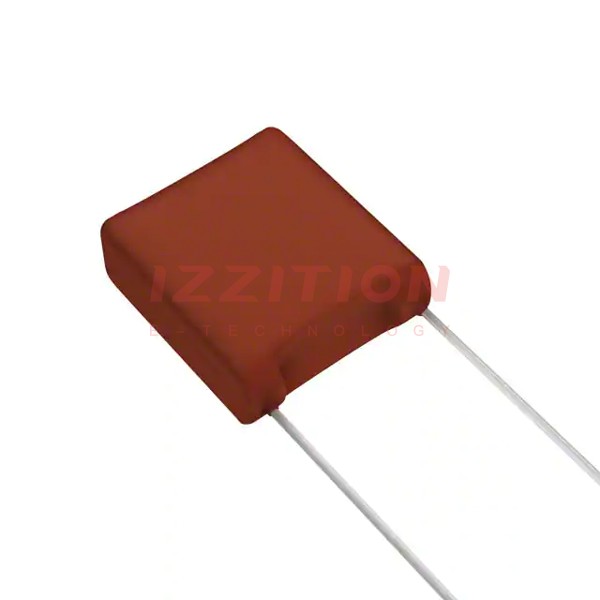

Panasonic Electronic Components ECW-FA2J124J4

Manufacturer No:
ECW-FA2J124J4
Manufacturer:
Panasonic Electronic Components
Package:
Tape & Box (TB)
Datasheet:
ECW-FA2J124J4 Datasheet
ECAD Model:
-
Description:
CAP FILM 0.12UF 5% 630VDC RADIAL
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Capacitance:0.12 µF
Tolerance:±5%
Voltage Rating - AC:-
Voltage Rating - DC:630V
Dielectric Material:Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance):-
Operating Temperature:-40°C ~ 105°C
Mounting Type:Through Hole
Package / Case:Radial
Size / Dimension:0.717" L x 0.217" W (18.20mm x 5.50mm)
Height - Seated (Max):0.425" (10.80mm)
Termination:PC Pins
Lead Spacing:0.591" (15.00mm)
Applications:High Frequency, Switching
Ratings:-
Features:-
0 Remaining View Similar

In Stock

$0.39
1,489

Please send RFQ , we will respond immediately.

Similar Products

Part Number ECW-FA2J124J4 ECW-FA2J124JB   ECW-FA2J124JQ   ECW-FA2J154J4   ECW-FA2J184J4   ECW-FA2J124J5   ECW-FA2J224J4   ECW-FA2J104J4   ECW-FA2J124J
Manufacturer Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components Panasonic Electronic Components
Product Status Active Active Active Active Active Active Active Active Active
Capacitance 0.12 µF 0.12 µF 0.12 µF 0.15 µF 0.18 µF 0.12 µF 0.22 µF 0.1 µF 0.12 µF
Tolerance ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5%
Voltage Rating - AC - - - - - - - - 141V
Voltage Rating - DC 630V 630V 630V 630V 630V 630V 630V 630V 630V
Dielectric Material Polypropylene (PP), Metallized Polypropylene (PP), Metallized Polypropylene (PP), Metallized Polypropylene (PP), Metallized Polypropylene (PP), Metallized Polypropylene (PP), Metallized Polypropylene (PP), Metallized Polypropylene (PP), Metallized Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) - - - - - - - - -
Operating Temperature -40°C ~ 105°C -40°C ~ 105°C -40°C ~ 105°C -40°C ~ 105°C -40°C ~ 105°C -40°C ~ 105°C -40°C ~ 105°C -40°C ~ 105°C -40°C ~ 105°C
Mounting Type Through Hole Through Hole Through Hole Through Hole Through Hole Through Hole Through Hole Through Hole Through Hole
Package / Case Radial Radial Radial Radial Radial Radial Radial Radial Radial
Size / Dimension 0.717" L x 0.217" W (18.20mm x 5.50mm) 0.717" L x 0.217" W (18.20mm x 5.50mm) 0.717" L x 0.217" W (18.20mm x 5.50mm) 0.717" L x 0.236" W (18.20mm x 6.00mm) 0.717" L x 0.256" W (18.20mm x 6.50mm) 0.717" L x 0.217" W (18.20mm x 5.50mm) 0.717" L x 0.280" W (18.20mm x 7.10mm) 0.709" L x 0.205" W (18.00mm x 5.20mm) 0.717" L x 0.217" W (18.20mm x 5.50mm)
Height - Seated (Max) 0.425" (10.80mm) 0.622" (15.80mm) 0.622" (15.80mm) 0.441" (11.20mm) 0.461" (11.70mm) 0.425" (10.80mm) 0.484" (12.30mm) 0.409" (10.40mm) 0.425" (10.80mm)
Termination PC Pins PC Pins PC Pins PC Pins PC Pins PC Pins PC Pins PC Pins PC Pins
Lead Spacing 0.591" (15.00mm) 0.295" (7.50mm) 0.591" (15.00mm) 0.591" (15.00mm) 0.591" (15.00mm) 0.591" (15.00mm) 0.591" (15.00mm) 0.591" (15.00mm) 0.591" (15.00mm)
Applications High Frequency, Switching High Frequency, Switching High Frequency, Switching High Frequency, Switching High Frequency, Switching High Frequency, Switching High Frequency, Switching High Frequency, Switching High Frequency, Switching
Ratings - - - - - - - - -
Features - - - - - - - - -
