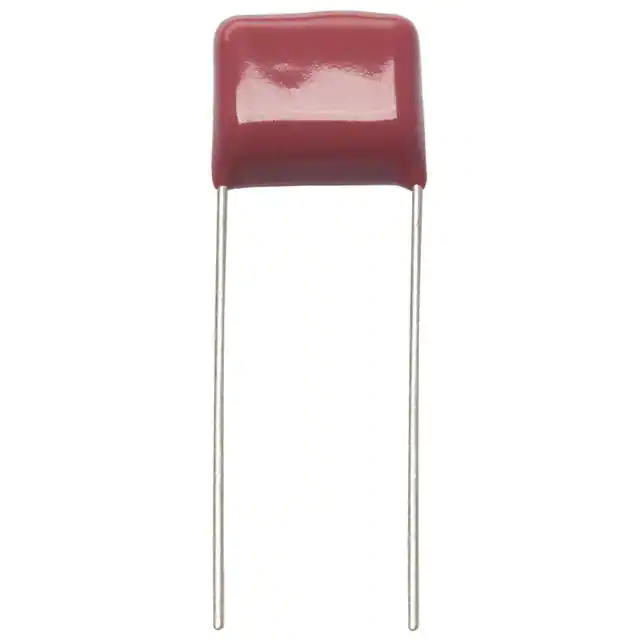

| Part Number | ECW-F6623HL | ECW-F6683HL | ECW-F6623JL | ECW-F6624HL | ECW-F6823HL | ECW-F6123HL | ECW-F6223HL |
|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 0.062 µF | 0.068 µF | 0.062 µF | 0.62 µF | 0.082 µF | 0.012 µF | 0.022 µF |
| Tolerance | ±3% | ±3% | ±5% | ±3% | ±3% | ±3% | ±3% |
| Voltage Rating - AC | 223V | 223V | 223V | 223V | 223V | 223V | 223V |
| Voltage Rating - DC | 630V | 630V | 630V | 630V | 630V | 630V | 630V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.610" L x 0.280" W (15.50mm x 7.10mm) | 0.610" L x 0.291" W (15.50mm x 7.40mm) | 0.610" L x 0.280" W (15.50mm x 7.10mm) | 1.102" L x 0.476" W (28.00mm x 12.10mm) | 0.610" L x 0.315" W (15.50mm x 8.00mm) | 0.492" L x 0.217" W (12.50mm x 5.50mm) | 0.492" L x 0.244" W (12.50mm x 6.20mm) |
| Height - Seated (Max) | 0.512" (13.00mm) | 0.524" (13.30mm) | 0.512" (13.00mm) | 0.795" (20.20mm) | 0.547" (13.90mm) | 0.386" (9.80mm) | 0.413" (10.50mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.492" (12.50mm) | 0.492" (12.50mm) | 0.492" (12.50mm) | 0.984" (25.00mm) | 0.492" (12.50mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - |
