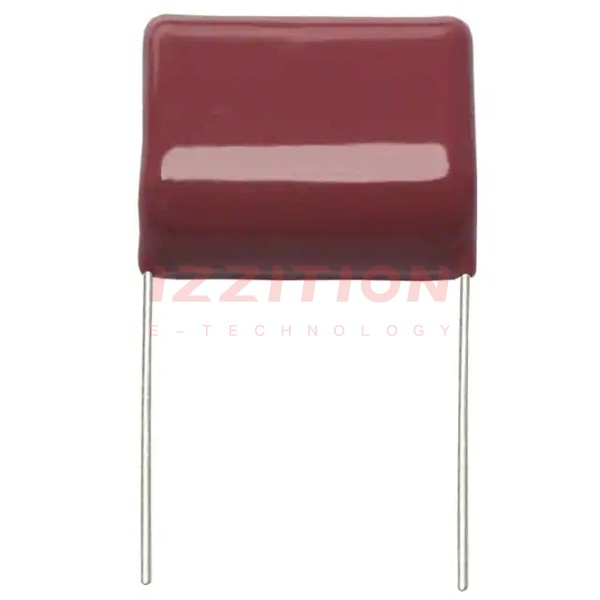

| Part Number | ECW-F6564HL | ECW-F6564JL | ECW-F6164HL | ECW-F6364HL | ECW-F6514HL | ECW-F6563HL |
|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active |
| Capacitance | 0.56 µF | 0.56 µF | 0.16 µF | 0.36 µF | 0.51 µF | 0.056 µF |
| Tolerance | ±3% | ±5% | ±3% | ±3% | ±3% | ±3% |
| Voltage Rating - AC | 223V | 223V | 223V | 223V | 223V | 223V |
| Voltage Rating - DC | 630V | 630V | 630V | 630V | 630V | 630V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 1.102" L x 0.457" W (28.00mm x 11.60mm) | 1.102" L x 0.457" W (28.00mm x 11.60mm) | 0.709" L x 0.366" W (18.00mm x 9.30mm) | 0.807" L x 0.469" W (20.50mm x 11.90mm) | 1.102" L x 0.437" W (28.00mm x 11.10mm) | 0.610" L x 0.268" W (15.50mm x 6.80mm) |
| Height - Seated (Max) | 0.760" (19.30mm) | 0.760" (19.30mm) | 0.602" (15.30mm) | 0.787" (20.00mm) | 0.740" (18.80mm) | 0.500" (12.70mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.984" (25.00mm) | 0.984" (25.00mm) | 0.591" (15.00mm) | 0.689" (17.50mm) | 0.984" (25.00mm) | 0.492" (12.50mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - | - | - |
| Features | - | - | - | - | - | - |
