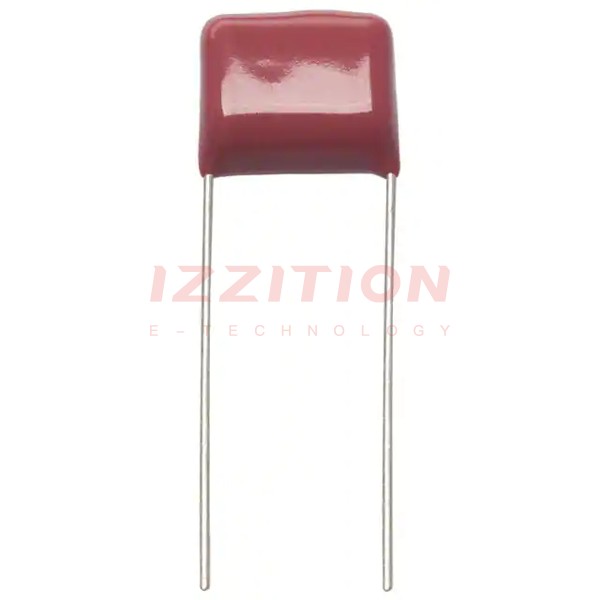

| Part Number | ECW-F6563HL | ECW-F6564HL | ECW-F6563JL | ECW-F6163HL | ECW-F6363HL | ECW-F6513HL |
|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active |
| Capacitance | 0.056 µF | 0.56 µF | 0.056 µF | 0.016 µF | 0.036 µF | 0.051 µF |
| Tolerance | ±3% | ±3% | ±5% | ±3% | ±3% | ±3% |
| Voltage Rating - AC | 223V | 223V | 223V | 223V | 223V | 223V |
| Voltage Rating - DC | 630V | 630V | 630V | 630V | 630V | 630V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.610" L x 0.268" W (15.50mm x 6.80mm) | 1.102" L x 0.457" W (28.00mm x 11.60mm) | 0.610" L x 0.268" W (15.50mm x 6.80mm) | 0.492" L x 0.236" W (12.50mm x 6.00mm) | 0.512" L x 0.287" W (13.00mm x 7.30mm) | 0.610" L x 0.260" W (15.50mm x 6.60mm) |
| Height - Seated (Max) | 0.500" (12.70mm) | 0.760" (19.30mm) | 0.500" (12.70mm) | 0.409" (10.40mm) | 0.461" (11.70mm) | 0.492" (12.50mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.492" (12.50mm) | 0.984" (25.00mm) | 0.492" (12.50mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.492" (12.50mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - | - | - |
| Features | - | - | - | - | - | - |
