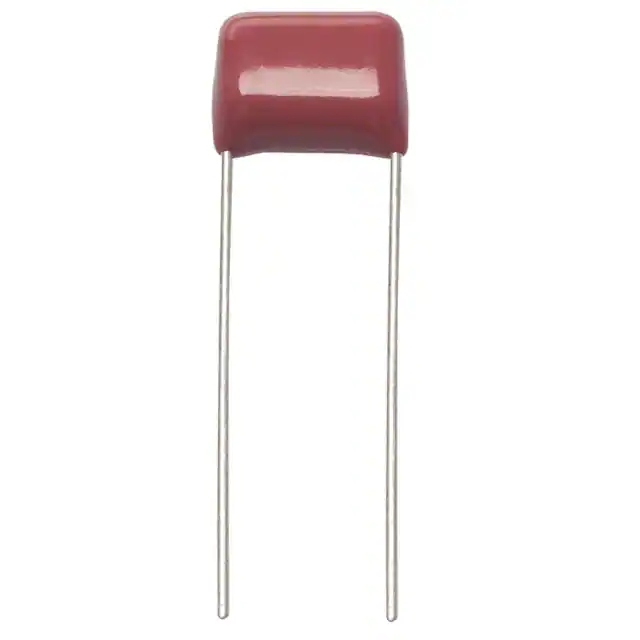

| Part Number | ECW-F6433JL | ECW-F6434JL | ECW-F6473JL | ECW-F6133JL | ECW-F6333JL | ECW-F6433HL |
|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active |
| Capacitance | 0.043 µF | 0.43 µF | 0.047 µF | 0.013 µF | 0.033 µF | 0.043 µF |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±3% |
| Voltage Rating - AC | 223V | 223V | 223V | 223V | 223V | 223V |
| Voltage Rating - DC | 630V | 630V | 630V | 630V | 630V | 630V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.512" L x 0.311" W (13.00mm x 7.90mm) | 0.807" L x 0.512" W (20.50mm x 13.00mm) | 0.610" L x 0.252" W (15.50mm x 6.40mm) | 0.492" L x 0.220" W (12.50mm x 5.60mm) | 0.512" L x 0.280" W (13.00mm x 7.10mm) | 0.512" L x 0.311" W (13.00mm x 7.90mm) |
| Height - Seated (Max) | 0.480" (12.20mm) | 0.827" (21.00mm) | 0.484" (12.30mm) | 0.394" (10.00mm) | 0.441" (11.20mm) | 0.480" (12.20mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.394" (10.00mm) | 0.689" (17.50mm) | 0.492" (12.50mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - | - | - |
| Features | - | - | - | - | - | - |
