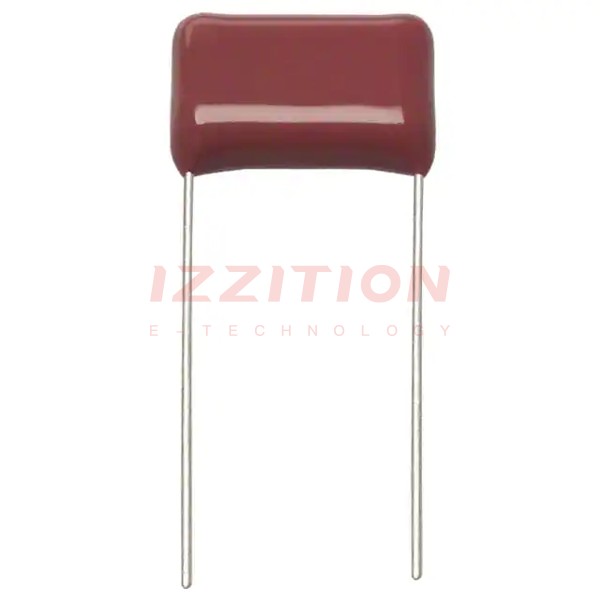

| Part Number | ECW-F6224HL | ECW-F6274HL | ECW-F6244HL | ECW-F6624HL | ECW-F6824HL | ECW-F6224JL | ECW-F6124HL | ECW-F6204HL | ECW-F6223HL |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 0.22 µF | 0.27 µF | 0.24 µF | 0.62 µF | 0.82 µF | 0.22 µF | 0.12 µF | 0.2 µF | 0.022 µF |
| Tolerance | ±3% | ±3% | ±3% | ±3% | ±3% | ±5% | ±3% | ±3% | ±3% |
| Voltage Rating - AC | 223V | 223V | 223V | 223V | 223V | 223V | 223V | 223V | 223V |
| Voltage Rating - DC | 630V | 630V | 630V | 630V | 630V | 630V | 630V | 630V | 630V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.709" L x 0.425" W (18.00mm x 10.80mm) | 0.807" L x 0.409" W (20.50mm x 10.40mm) | 0.709" L x 0.441" W (18.00mm x 11.20mm) | 1.102" L x 0.476" W (28.00mm x 12.10mm) | 1.102" L x 0.547" W (28.00mm x 13.90mm) | 0.709" L x 0.425" W (18.00mm x 10.80mm) | 0.709" L x 0.327" W (18.00mm x 8.30mm) | 0.709" L x 0.406" W (18.00mm x 10.30mm) | 0.492" L x 0.244" W (12.50mm x 6.20mm) |
| Height - Seated (Max) | 0.669" (17.00mm) | 0.717" (18.20mm) | 0.685" (17.40mm) | 0.795" (20.20mm) | 0.866" (22.00mm) | 0.669" (17.00mm) | 0.559" (14.20mm) | 0.638" (16.20mm) | 0.413" (10.50mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.591" (15.00mm) | 0.689" (17.50mm) | 0.591" (15.00mm) | 0.984" (25.00mm) | 0.984" (25.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.394" (10.00mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - | - |
