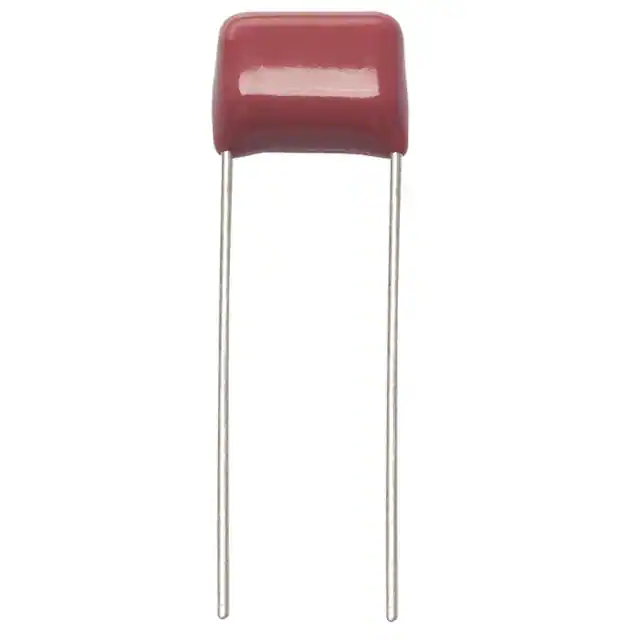

| Part Number | ECW-F6203JL | ECW-F6243JL | ECW-F6303JL | ECW-F6204JL | ECW-F6223JL | ECW-F6273JL | ECW-F6103JL | ECW-F6203HL |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 0.02 µF | 0.024 µF | 0.03 µF | 0.2 µF | 0.022 µF | 0.027 µF | 10000 pF | 0.02 µF |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±3% |
| Voltage Rating - AC | 223V | 223V | 223V | 223V | 223V | 223V | 223V | 223V |
| Voltage Rating - DC | 630V | 630V | 630V | 630V | 630V | 630V | 630V | 630V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.492" L x 0.256" W (12.50mm x 6.50mm) | 0.492" L x 0.252" W (12.50mm x 6.40mm) | 0.512" L x 0.272" W (13.00mm x 6.90mm) | 0.709" L x 0.406" W (18.00mm x 10.30mm) | 0.492" L x 0.244" W (12.50mm x 6.20mm) | 0.512" L x 0.260" W (13.00mm x 6.60mm) | 0.492" L x 0.205" W (12.50mm x 5.20mm) | 0.492" L x 0.256" W (12.50mm x 6.50mm) |
| Height - Seated (Max) | 0.425" (10.80mm) | 0.421" (10.70mm) | 0.441" (11.20mm) | 0.638" (16.20mm) | 0.413" (10.50mm) | 0.433" (11.00mm) | 0.374" (9.50mm) | 0.425" (10.80mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.591" (15.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - |
