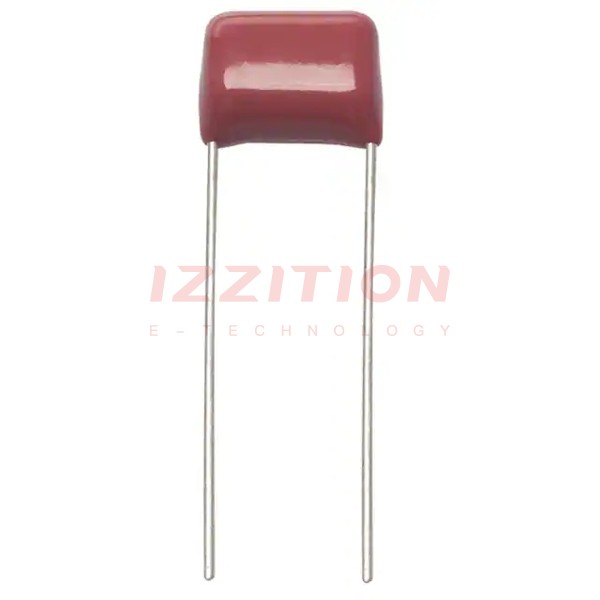

| Part Number | ECW-F6153HL | ECW-F6753HL | ECW-F6153JL | ECW-F6163HL | ECW-F6183HL | ECW-F6154HL | ECW-F6103HL | ECW-F6113HL | ECW-F6123HL | ECW-F6133HL |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 0.015 µF | 0.075 µF | 0.015 µF | 0.016 µF | 0.018 µF | 0.15 µF | 10000 pF | 0.011 µF | 0.012 µF | 0.013 µF |
| Tolerance | ±3% | ±3% | ±5% | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% |
| Voltage Rating - AC | 223V | 223V | 223V | 223V | 223V | 223V | 223V | 223V | 223V | 223V |
| Voltage Rating - DC | 630V | 630V | 630V | 630V | 630V | 630V | 630V | 630V | 630V | 630V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.492" L x 0.232" W (12.50mm x 5.90mm) | 0.610" L x 0.303" W (15.50mm x 7.70mm) | 0.492" L x 0.232" W (12.50mm x 5.90mm) | 0.492" L x 0.236" W (12.50mm x 6.00mm) | 0.492" L x 0.244" W (12.50mm x 6.20mm) | 0.709" L x 0.358" W (18.00mm x 9.10mm) | 0.492" L x 0.205" W (12.50mm x 5.20mm) | 0.492" L x 0.213" W (12.50mm x 5.40mm) | 0.492" L x 0.217" W (12.50mm x 5.50mm) | 0.492" L x 0.220" W (12.50mm x 5.60mm) |
| Height - Seated (Max) | 0.402" (10.20mm) | 0.535" (13.60mm) | 0.402" (10.20mm) | 0.409" (10.40mm) | 0.417" (10.60mm) | 0.591" (15.00mm) | 0.374" (9.50mm) | 0.382" (9.70mm) | 0.386" (9.80mm) | 0.394" (10.00mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.394" (10.00mm) | 0.492" (12.50mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.591" (15.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - | - | - |
