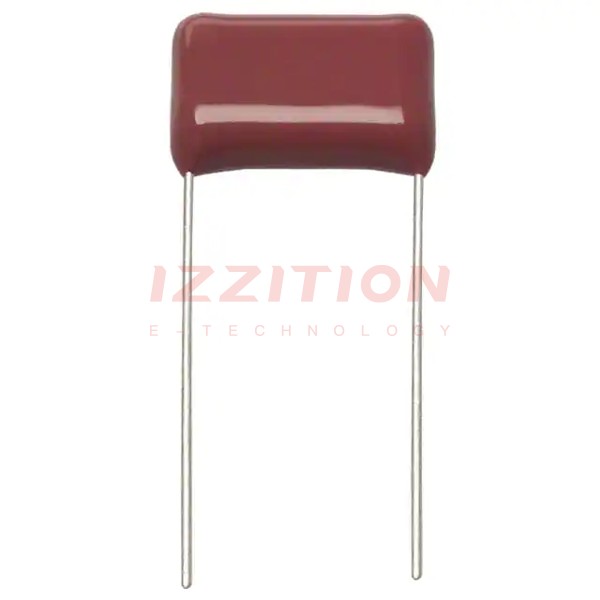

| Part Number | ECW-F6134HL | ECW-F6134JL | ECW-F6184HL | ECW-F6135HL | ECW-F6434HL | ECW-F6154HL | ECW-F6164HL | ECW-F6334HL | ECW-F6104HL | ECW-F6114HL | ECW-F6124HL | ECW-F6133HL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 0.13 µF | 0.13 µF | 0.18 µF | 1.3 µF | 0.43 µF | 0.15 µF | 0.16 µF | 0.33 µF | 0.1 µF | 0.11 µF | 0.12 µF | 0.013 µF |
| Tolerance | ±3% | ±5% | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% |
| Voltage Rating - AC | 223V | 223V | 223V | 223V | 223V | 223V | 223V | 223V | 223V | 223V | 223V | 223V |
| Voltage Rating - DC | 630V | 630V | 630V | 630V | 630V | 630V | 630V | 630V | 630V | 630V | 630V | 630V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.709" L x 0.386" W (18.00mm x 9.80mm) | 1.102" L x 0.693" W (28.00mm x 17.60mm) | 0.807" L x 0.512" W (20.50mm x 13.00mm) | 0.709" L x 0.358" W (18.00mm x 9.10mm) | 0.709" L x 0.366" W (18.00mm x 9.30mm) | 0.807" L x 0.449" W (20.50mm x 11.40mm) | 0.709" L x 0.303" W (18.00mm x 7.70mm) | 0.709" L x 0.315" W (18.00mm x 8.00mm) | 0.709" L x 0.327" W (18.00mm x 8.30mm) | 0.492" L x 0.220" W (12.50mm x 5.60mm) |
| Height - Seated (Max) | 0.571" (14.50mm) | 0.571" (14.50mm) | 0.618" (15.70mm) | 1.020" (25.91mm) | 0.827" (21.00mm) | 0.591" (15.00mm) | 0.602" (15.30mm) | 0.756" (19.20mm) | 0.535" (13.60mm) | 0.547" (13.90mm) | 0.559" (14.20mm) | 0.394" (10.00mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.984" (25.00mm) | 0.689" (17.50mm) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.689" (17.50mm) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.394" (10.00mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - | - | - | - | - |
