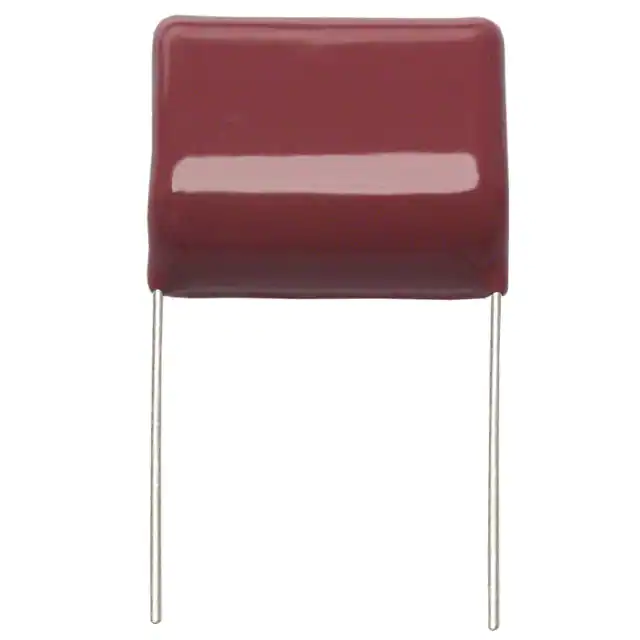

| Part Number | ECW-F6115HL | ECW-F6125HL | ECW-F6115JL | ECW-F6135HL | ECW-F6105HL | ECW-F6113HL | ECW-F6114HL |
|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 1.1 µF | 1.2 µF | 1.1 µF | 1.3 µF | 1 µF | 0.011 µF | 0.11 µF |
| Tolerance | ±3% | ±3% | ±5% | ±3% | ±3% | ±3% | ±3% |
| Voltage Rating - AC | 223V | 223V | 223V | 223V | 223V | 223V | 223V |
| Voltage Rating - DC | 630V | 630V | 630V | 630V | 630V | 630V | 630V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 1.102" L x 0.642" W (28.00mm x 16.30mm) | 1.102" L x 0.669" W (28.00mm x 17.00mm) | 1.102" L x 0.642" W (28.00mm x 16.30mm) | 1.102" L x 0.693" W (28.00mm x 17.60mm) | 1.102" L x 0.610" W (28.00mm x 15.50mm) | 0.492" L x 0.213" W (12.50mm x 5.40mm) | 0.709" L x 0.315" W (18.00mm x 8.00mm) |
| Height - Seated (Max) | 0.965" (24.50mm) | 0.992" (25.20mm) | 0.965" (24.50mm) | 1.020" (25.91mm) | 0.937" (23.80mm) | 0.382" (9.70mm) | 0.547" (13.90mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.984" (25.00mm) | 0.984" (25.00mm) | 0.984" (25.00mm) | 0.984" (25.00mm) | 0.984" (25.00mm) | 0.394" (10.00mm) | 0.591" (15.00mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - |
