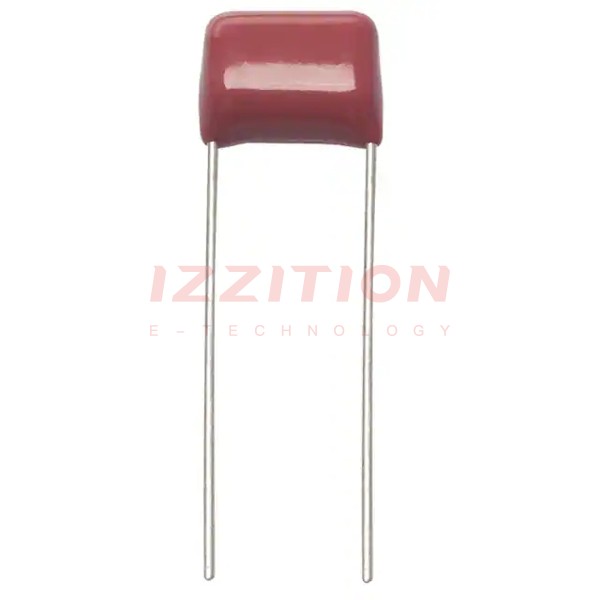

| Part Number | ECW-F4913HL | ECW-F4914HL | ECW-F4913JL | ECW-F4513HL |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active |
| Capacitance | 0.091 µF | 0.91 µF | 0.091 µF | 0.051 µF |
| Tolerance | ±3% | ±3% | ±5% | ±3% |
| Voltage Rating - AC | 141V | 141V | 141V | 141V |
| Voltage Rating - DC | 400V | 400V | 400V | 400V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.512" L x 0.307" W (13.00mm x 7.80mm) | 0.906" L x 0.488" W (23.00mm x 12.40mm) | 0.512" L x 0.307" W (13.00mm x 7.80mm) | 0.492" L x 0.252" W (12.50mm x 6.40mm) |
| Height - Seated (Max) | 0.480" (12.20mm) | 0.815" (20.70mm) | 0.480" (12.20mm) | 0.421" (10.70mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.394" (10.00mm) | 0.787" (20.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - |
| Features | - | - | - | - |
