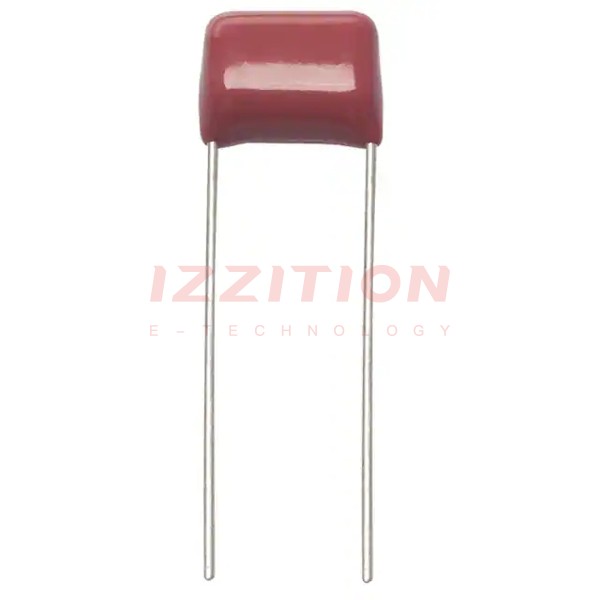

| Part Number | ECW-F4753HL | ECW-F4754HL | ECW-F4753JL |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active |
| Capacitance | 0.075 µF | 0.75 µF | 0.075 µF |
| Tolerance | ±3% | ±3% | ±5% |
| Voltage Rating - AC | 141V | 141V | 141V |
| Voltage Rating - DC | 400V | 400V | 400V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 0.512" L x 0.287" W (13.00mm x 7.30mm) | 0.807" L x 0.484" W (20.50mm x 12.30mm) | 0.512" L x 0.287" W (13.00mm x 7.30mm) |
| Height - Seated (Max) | 0.457" (11.60mm) | 0.811" (20.60mm) | 0.457" (11.60mm) |
| Termination | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.394" (10.00mm) | 0.689" (17.50mm) | 0.394" (10.00mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - |
| Features | - | - | - |
