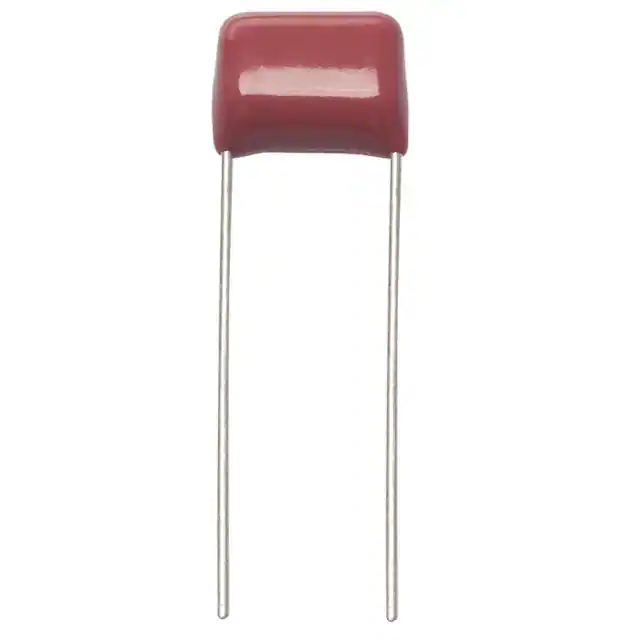

| Part Number | ECW-F4333JL | ECW-F4433JL | ECW-F4393JL | ECW-F4363JL | ECW-F4334JL | ECW-F4303JL | ECW-F4333HL |
|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 0.033 µF | 0.043 µF | 0.039 µF | 0.036 µF | 0.33 µF | 0.03 µF | 0.033 µF |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±3% |
| Voltage Rating - AC | 141V | 141V | 141V | 141V | 141V | 141V | 141V |
| Voltage Rating - DC | 400V | 400V | 400V | 400V | 400V | 400V | 400V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.492" L x 0.264" W (12.50mm x 6.70mm) | 0.492" L x 0.236" W (12.50mm x 6.00mm) | 0.492" L x 0.228" W (12.50mm x 5.80mm) | 0.492" L x 0.224" W (12.50mm x 5.70mm) | 0.709" L x 0.378" W (18.00mm x 9.60mm) | 0.492" L x 0.252" W (12.50mm x 6.40mm) | 0.492" L x 0.264" W (12.50mm x 6.70mm) |
| Height - Seated (Max) | 0.433" (11.00mm) | 0.406" (10.30mm) | 0.398" (10.10mm) | 0.386" (9.80mm) | 0.622" (15.80mm) | 0.425" (10.80mm) | 0.433" (11.00mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.591" (15.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - |
