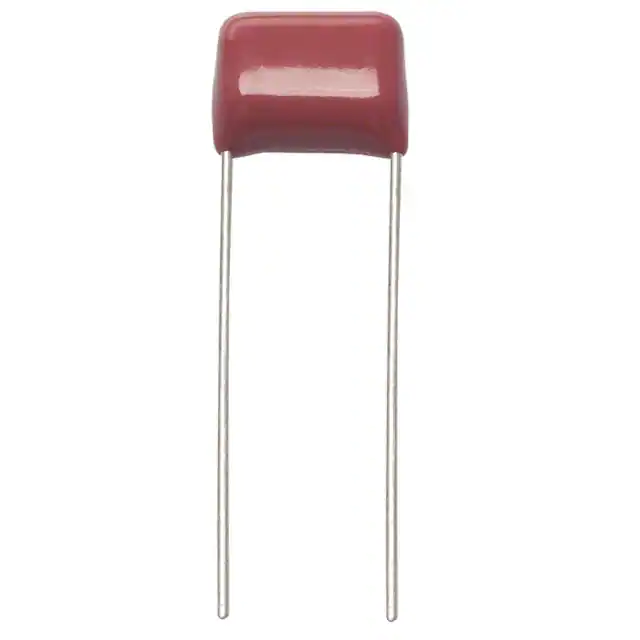

| Part Number | ECW-F4273HL | ECW-F4274HL | ECW-F4273JL | ECW-F4473HL | ECW-F4223HL | ECW-F4243HL |
|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active |
| Capacitance | 0.027 µF | 0.27 µF | 0.027 µF | 0.047 µF | 0.022 µF | 0.024 µF |
| Tolerance | ±3% | ±3% | ±5% | ±3% | ±3% | ±3% |
| Voltage Rating - AC | 141V | 141V | 141V | 141V | 141V | 141V |
| Voltage Rating - DC | 400V | 400V | 400V | 400V | 400V | 400V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.492" L x 0.244" W (12.50mm x 6.20mm) | 0.709" L x 0.346" W (18.00mm x 8.80mm) | 0.492" L x 0.244" W (12.50mm x 6.20mm) | 0.492" L x 0.244" W (12.50mm x 6.20mm) | 0.492" L x 0.228" W (12.50mm x 5.80mm) | 0.492" L x 0.236" W (12.50mm x 6.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) | 0.587" (14.90mm) | 0.413" (10.50mm) | 0.413" (10.50mm) | 0.398" (10.10mm) | 0.406" (10.30mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.394" (10.00mm) | 0.591" (15.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - | - | - |
| Features | - | - | - | - | - | - |
