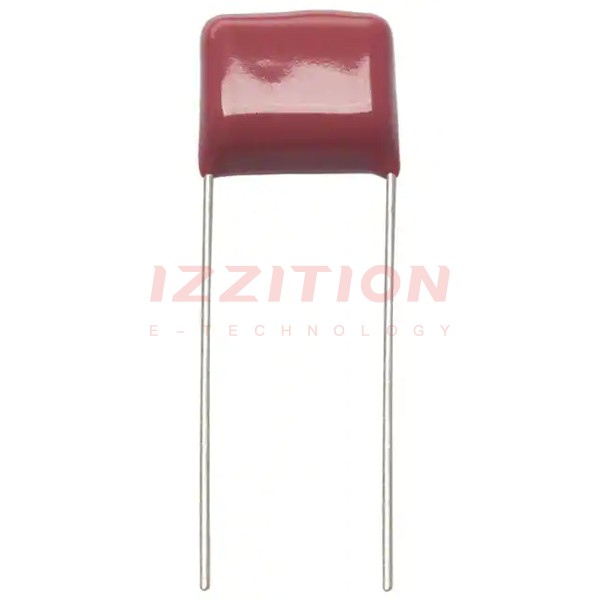

| Part Number | ECW-F4224JL | ECW-F4274JL | ECW-F4624JL | ECW-F4824JL | ECW-F4244JL | ECW-F4225JL | ECW-F4124JL | ECW-F4204JL | ECW-F4223JL | ECW-F4224HL | ECW-F4224JB |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 0.22 µF | 0.27 µF | 0.62 µF | 0.82 µF | 0.24 µF | 2.2 µF | 0.12 µF | 0.2 µF | 0.022 µF | 0.22 µF | 0.22 µF |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±3% | ±5% |
| Voltage Rating - AC | 141V | 141V | 141V | 141V | 141V | 141V | 141V | 141V | 141V | 141V | 200V |
| Voltage Rating - DC | 400V | 400V | 400V | 400V | 400V | 400V | 400V | 400V | 400V | 400V | 400V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -25°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.610" L x 0.354" W (15.50mm x 9.00mm) | 0.709" L x 0.346" W (18.00mm x 8.80mm) | 0.807" L x 0.445" W (20.50mm x 11.30mm) | 0.906" L x 0.465" W (23.00mm x 11.80mm) | 0.709" L x 0.327" W (18.00mm x 8.30mm) | 1.102" L x 0.661" W (28.00mm x 16.80mm) | 0.610" L x 0.276" W (15.50mm x 7.00mm) | 0.610" L x 0.339" W (15.50mm x 8.60mm) | 0.492" L x 0.228" W (12.50mm x 5.80mm) | 0.610" L x 0.354" W (15.50mm x 9.00mm) | 0.787" L x 0.374" W (20.00mm x 9.50mm) |
| Height - Seated (Max) | 0.594" (15.10mm) | 0.587" (14.90mm) | 0.764" (19.40mm) | 0.787" (20.00mm) | 0.571" (14.50mm) | 1.004" (25.50mm) | 0.512" (13.00mm) | 0.583" (14.80mm) | 0.398" (10.10mm) | 0.594" (15.10mm) | 0.709" (18.00mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.492" (12.50mm) | 0.591" (15.00mm) | 0.689" (17.50mm) | 0.787" (20.00mm) | 0.591" (15.00mm) | 0.984" (25.00mm) | 0.492" (12.50mm) | 0.492" (12.50mm) | 0.394" (10.00mm) | 0.492" (12.50mm) | 0.669" (17.00mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - | - | - | - |
