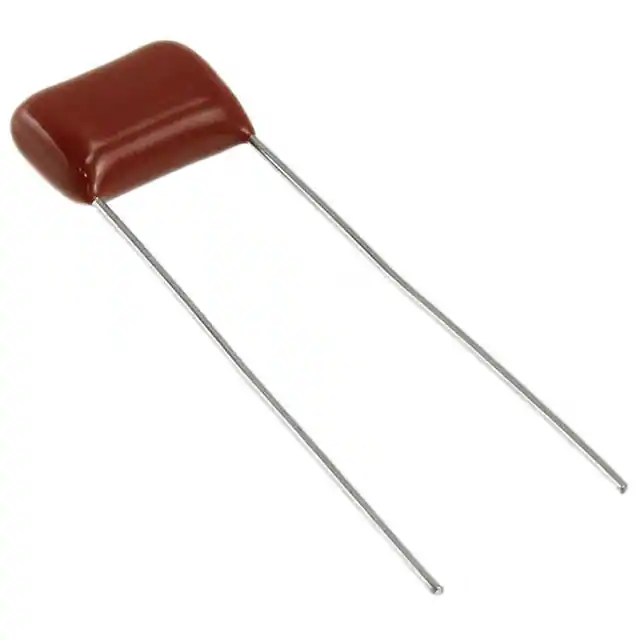

| Part Number | ECW-F4223HL | ECW-F4273HL | ECW-F4623HL | ECW-F4224HL | ECW-F4223JL | ECW-F4243HL | ECW-F4823HL | ECW-F4225HL |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 0.022 µF | 0.027 µF | 0.062 µF | 0.22 µF | 0.022 µF | 0.024 µF | 0.082 µF | 2.2 µF |
| Tolerance | ±3% | ±3% | ±3% | ±3% | ±5% | ±3% | ±3% | ±3% |
| Voltage Rating - AC | 141V | 141V | 141V | 141V | 141V | 141V | 141V | 141V |
| Voltage Rating - DC | 400V | 400V | 400V | 400V | 400V | 400V | 400V | 400V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.492" L x 0.228" W (12.50mm x 5.80mm) | 0.492" L x 0.244" W (12.50mm x 6.20mm) | 0.512" L x 0.268" W (13.00mm x 6.80mm) | 0.610" L x 0.354" W (15.50mm x 9.00mm) | 0.492" L x 0.228" W (12.50mm x 5.80mm) | 0.492" L x 0.236" W (12.50mm x 6.00mm) | 0.512" L x 0.295" W (13.00mm x 7.50mm) | 1.102" L x 0.661" W (28.00mm x 16.80mm) |
| Height - Seated (Max) | 0.398" (10.10mm) | 0.413" (10.50mm) | 0.437" (11.10mm) | 0.594" (15.10mm) | 0.398" (10.10mm) | 0.406" (10.30mm) | 0.469" (11.90mm) | 1.004" (25.50mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.492" (12.50mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.984" (25.00mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - |
