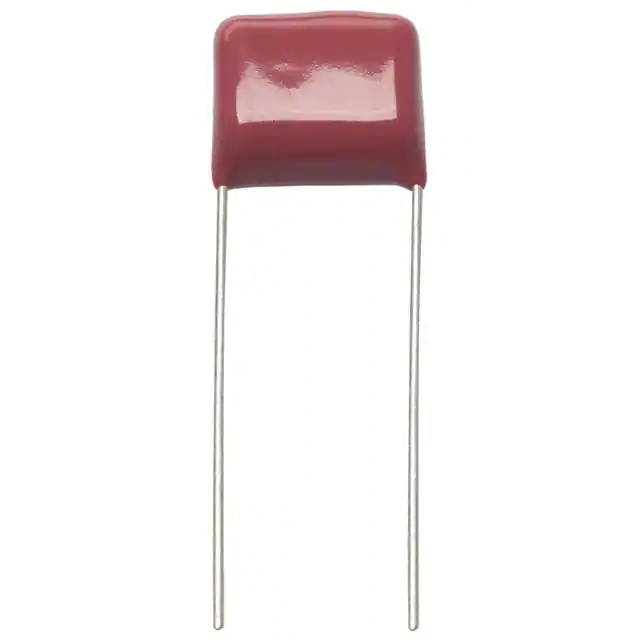

| Part Number | ECW-F4204HL | ECW-F4204JL | ECW-F4224HL | ECW-F4244HL | ECW-F4274HL | ECW-F4304HL | ECW-F4205HL | ECW-F4104HL |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 0.2 µF | 0.2 µF | 0.22 µF | 0.24 µF | 0.27 µF | 0.3 µF | 2 µF | 0.1 µF |
| Tolerance | ±3% | ±5% | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% |
| Voltage Rating - AC | 141V | 141V | 141V | 141V | 141V | 141V | 141V | 141V |
| Voltage Rating - DC | 400V | 400V | 400V | 400V | 400V | 400V | 400V | 400V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.610" L x 0.339" W (15.50mm x 8.60mm) | 0.610" L x 0.339" W (15.50mm x 8.60mm) | 0.610" L x 0.354" W (15.50mm x 9.00mm) | 0.709" L x 0.327" W (18.00mm x 8.30mm) | 0.709" L x 0.346" W (18.00mm x 8.80mm) | 0.709" L x 0.362" W (18.00mm x 9.20mm) | 1.102" L x 0.630" W (28.00mm x 16.00mm) | 0.610" L x 0.256" W (15.50mm x 6.50mm) |
| Height - Seated (Max) | 0.583" (14.80mm) | 0.583" (14.80mm) | 0.594" (15.10mm) | 0.571" (14.50mm) | 0.587" (14.90mm) | 0.606" (15.40mm) | 0.969" (24.60mm) | 0.492" (12.50mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.492" (12.50mm) | 0.492" (12.50mm) | 0.492" (12.50mm) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.984" (25.00mm) | 0.492" (12.50mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - |
