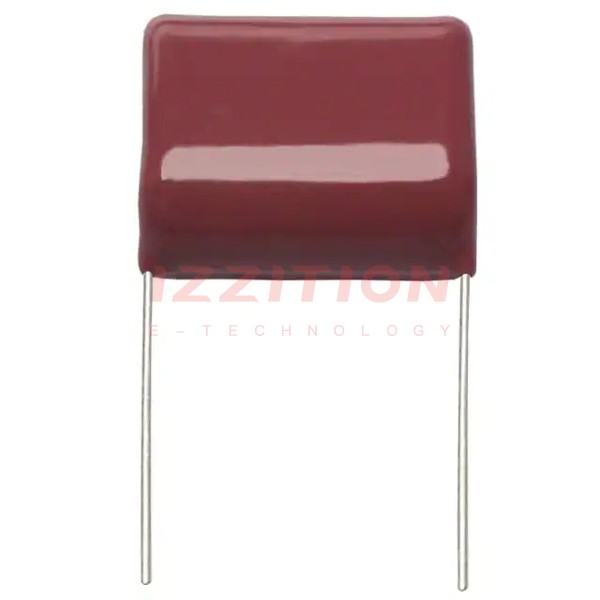

| Part Number | ECW-F4125JL | ECW-F4165JL | ECW-F4185JL | ECW-F4135JL | ECW-F4155JL | ECW-F4225JL | ECW-F4105JL | ECW-F4115JL | ECW-F4124JL | ECW-F4125HL | ECW-F4125JB |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 1.2 µF | 1.6 µF | 1.8 µF | 1.3 µF | 1.5 µF | 2.2 µF | 1 µF | 1.1 µF | 0.12 µF | 1.2 µF | 1.2 µF |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±3% | ±5% |
| Voltage Rating - AC | 141V | 141V | 141V | 141V | 141V | 141V | 141V | 141V | 141V | 141V | - |
| Voltage Rating - DC | 400V | 400V | 400V | 400V | 400V | 400V | 400V | 400V | 400V | 400V | 400V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -25°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 1.102" L x 0.484" W (28.00mm x 12.30mm) | 1.102" L x 0.559" W (28.00mm x 14.20mm) | 1.102" L x 0.598" W (28.00mm x 15.20mm) | 1.102" L x 0.504" W (28.00mm x 12.80mm) | 1.102" L x 0.539" W (28.00mm x 13.70mm) | 1.102" L x 0.661" W (28.00mm x 16.80mm) | 0.906" L x 0.512" W (23.00mm x 13.00mm) | 0.906" L x 0.535" W (23.00mm x 13.60mm) | 0.610" L x 0.276" W (15.50mm x 7.00mm) | 1.102" L x 0.484" W (28.00mm x 12.30mm) | 1.102" L x 0.650" W (28.00mm x 16.50mm) |
| Height - Seated (Max) | 0.811" (20.60mm) | 0.894" (22.70mm) | 0.933" (23.70mm) | 0.831" (21.10mm) | 0.874" (22.20mm) | 1.004" (25.50mm) | 0.839" (21.30mm) | 0.866" (22.00mm) | 0.512" (13.00mm) | 0.811" (20.60mm) | 0.984" (25.00mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.984" (25.00mm) | 0.984" (25.00mm) | 0.984" (25.00mm) | 0.984" (25.00mm) | 0.984" (25.00mm) | 0.984" (25.00mm) | 0.787" (20.00mm) | 0.787" (20.00mm) | 0.492" (12.50mm) | 0.984" (25.00mm) | 0.984" (25.00mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - | - | - | - |
