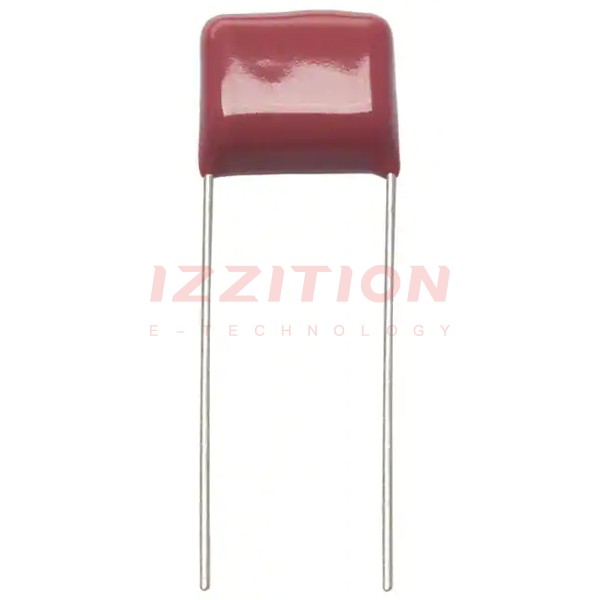

| Part Number | ECW-F4124HL | ECW-F4124JL | ECW-F4164HL | ECW-F4224HL | ECW-F4624HL | ECW-F4154HL | ECW-F4184HL | ECW-F4134HL | ECW-F4125HL | ECW-F4104HL | ECW-F4114HL |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 0.12 µF | 0.12 µF | 0.16 µF | 0.22 µF | 0.62 µF | 0.15 µF | 0.18 µF | 0.13 µF | 1.2 µF | 0.1 µF | 0.11 µF |
| Tolerance | ±3% | ±5% | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% |
| Voltage Rating - AC | 141V | 141V | 141V | 141V | 141V | 141V | 141V | - | 141V | 141V | 141V |
| Voltage Rating - DC | 400V | 400V | 400V | 400V | 400V | 400V | 400V | 400V | 400V | 400V | 400V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.610" L x 0.276" W (15.50mm x 7.00mm) | 0.610" L x 0.276" W (15.50mm x 7.00mm) | 0.610" L x 0.307" W (15.50mm x 7.80mm) | 0.610" L x 0.354" W (15.50mm x 9.00mm) | 0.807" L x 0.445" W (20.50mm x 11.30mm) | 0.610" L x 0.299" W (15.50mm x 7.60mm) | 0.610" L x 0.323" W (15.50mm x 8.20mm) | 0.610" L x 0.283" W (15.50mm x 7.20mm) | 1.102" L x 0.484" W (28.00mm x 12.30mm) | 0.610" L x 0.256" W (15.50mm x 6.50mm) | 0.610" L x 0.268" W (15.50mm x 6.80mm) |
| Height - Seated (Max) | 0.512" (13.00mm) | 0.512" (13.00mm) | 0.547" (13.90mm) | 0.594" (15.10mm) | 0.764" (19.40mm) | - | 0.563" (14.30mm) | 0.524" (13.30mm) | 0.811" (20.60mm) | 0.492" (12.50mm) | 0.504" (12.80mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.492" (12.50mm) | 0.492" (12.50mm) | 0.492" (12.50mm) | 0.492" (12.50mm) | 0.689" (17.50mm) | 0.492" (12.50mm) | 0.492" (12.50mm) | 0.492" (12.50mm) | 0.984" (25.00mm) | 0.492" (12.50mm) | 0.492" (12.50mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - | - | - | - |
