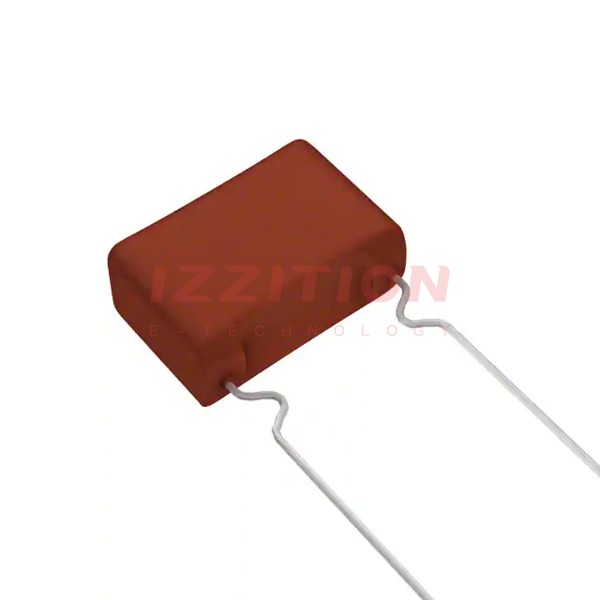

| Part Number | ECW-F2W474JAQ | ECW-F2474JAQ | ECW-F2W274JAQ |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active |
| Capacitance | 0.47 µF | 0.47 µF | 0.27 µF |
| Tolerance | ±5% | ±5% | ±5% |
| Voltage Rating - AC | 84V | 125V | 84V |
| Voltage Rating - DC | 450V | 250V | 450V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 0.512" L x 0.343" W (13.00mm x 8.70mm) | 0.512" L x 0.331" W (13.00mm x 8.40mm) | 0.512" L x 0.276" W (13.00mm x 7.00mm) |
| Height - Seated (Max) | 0.764" (19.40mm) | 0.752" (19.10mm) | 0.697" (17.70mm) |
| Termination | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - |
| Features | - | - | - |
