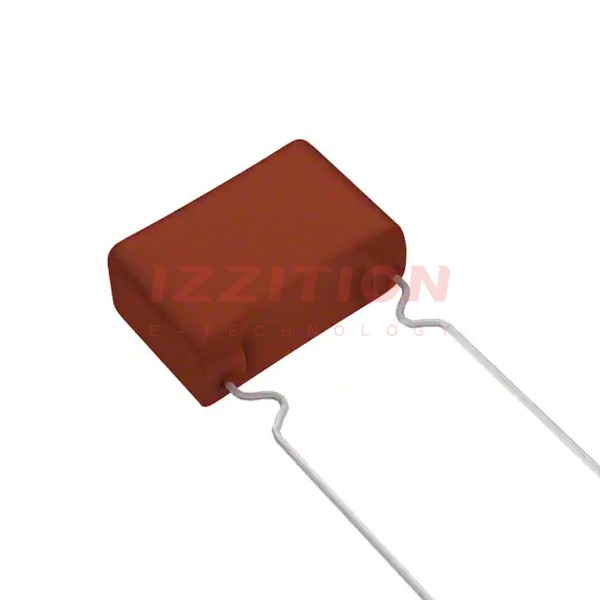

| Part Number | ECW-F2W394JAQ | ECW-F2394JAQ | ECW-F2W334JAQ |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active |
| Capacitance | 0.39 µF | 0.39 µF | 0.33 µF |
| Tolerance | ±5% | ±5% | ±5% |
| Voltage Rating - AC | 84V | 125V | 84V |
| Voltage Rating - DC | 450V | 250V | 450V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 0.512" L x 0.319" W (13.00mm x 8.10mm) | 0.512" L x 0.307" W (13.00mm x 7.80mm) | 0.512" L x 0.299" W (13.00mm x 7.60mm) |
| Height - Seated (Max) | 0.736" (18.70mm) | 0.724" (18.40mm) | 0.717" (18.20mm) |
| Termination | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - |
| Features | - | - | - |
