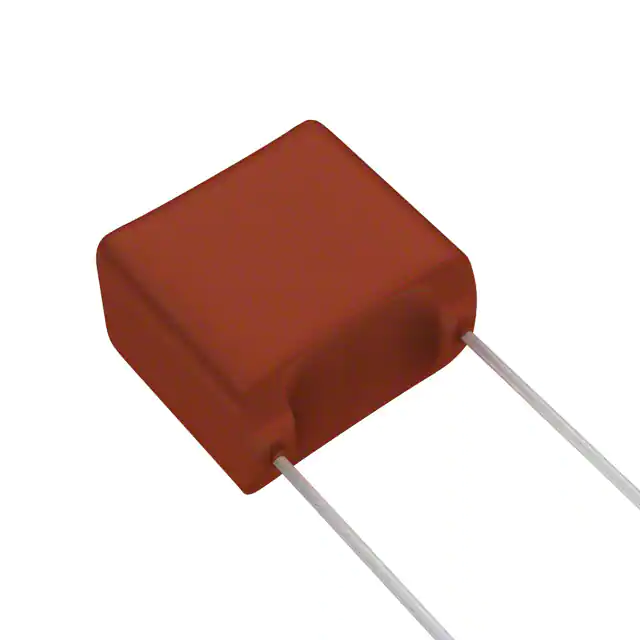

| Part Number | ECW-F2W225JA | ECW-F2W275JA | ECW-F2W225KA | ECW-F2W125JA |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active |
| Capacitance | 2.2 µF | 2.7 µF | 2.2 µF | 1.2 µF |
| Tolerance | ±5% | ±5% | ±10% | ±5% |
| Voltage Rating - AC | 84V | 84V | - | 84V |
| Voltage Rating - DC | 450V | 450V | 450V | 450V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.740" L x 0.504" W (18.80mm x 12.80mm) | 1.035" L x 0.417" W (26.30mm x 10.60mm) | 0.740" L x 0.504" W (18.80mm x 12.80mm) | 0.740" L x 0.382" W (18.80mm x 9.70mm) |
| Height - Seated (Max) | 0.764" (19.40mm) | 0.709" (18.00mm) | 0.764" (19.40mm) | 0.638" (16.20mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.591" (15.00mm) | 0.886" (22.50mm) | 0.591" (15.00mm) | 0.591" (15.00mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - |
| Features | - | - | - | - |
