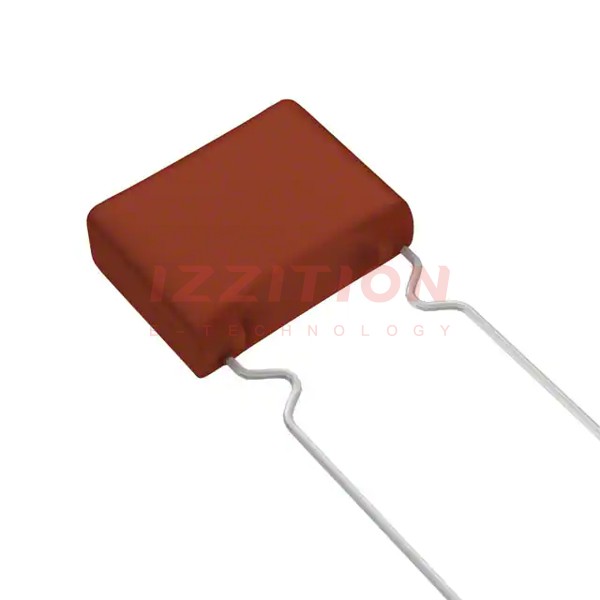

| Part Number | ECW-F2W184JAQ | ECW-F2W104JAQ | ECW-F2W124JAQ | ECW-F2W154JAQ | ECW-F2W184JAB |
|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 0.18 µF | 0.1 µF | 0.12 µF | 0.15 µF | 0.18 µF |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | 84V | 84V | 84V | 84V | - |
| Voltage Rating - DC | 450V | 450V | 450V | 450V | 450V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.512" L x 0.240" W (13.00mm x 6.10mm) | 0.512" L x 0.201" W (13.00mm x 5.10mm) | 0.512" L x 0.213" W (13.00mm x 5.40mm) | 0.512" L x 0.224" W (13.00mm x 5.70mm) | 0.512" L x 0.240" W (13.00mm x 6.10mm) |
| Height - Seated (Max) | 0.657" (16.70mm) | 0.622" (15.80mm) | 0.630" (16.00mm) | 0.646" (16.40mm) | 0.598" (15.20mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.295" (7.50mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - | - |
| Features | - | - | - | - | - |
