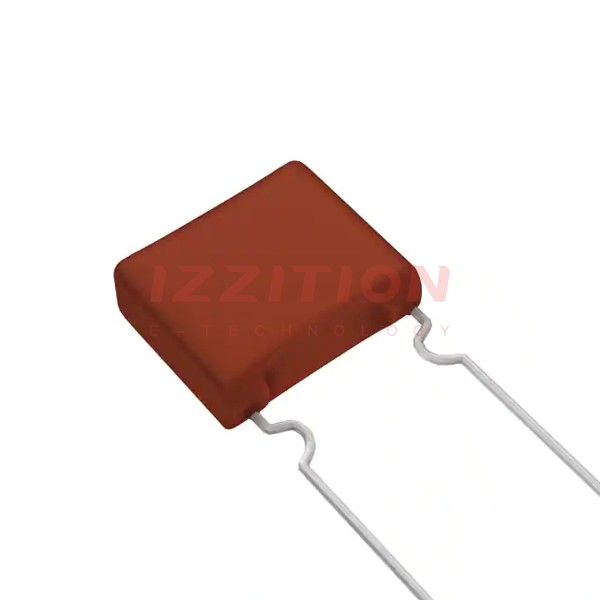

| Part Number | ECW-F2824HAB | ECW-F2824JAB | ECW-F2824HAQ |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active |
| Capacitance | 0.82 µF | 0.82 µF | 0.82 µF |
| Tolerance | ±3% | ±5% | ±3% |
| Voltage Rating - AC | - | - | - |
| Voltage Rating - DC | 250V | 250V | 250V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 0.713" L x 0.315" W (18.10mm x 8.00mm) | 0.713" L x 0.315" W (18.10mm x 8.00mm) | 0.713" L x 0.315" W (18.10mm x 8.00mm) |
| Height - Seated (Max) | 0.752" (19.10mm) | 0.752" (19.10mm) | 0.831" (21.10mm) |
| Termination | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.591" (15.00mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - |
| Features | - | - | - |
