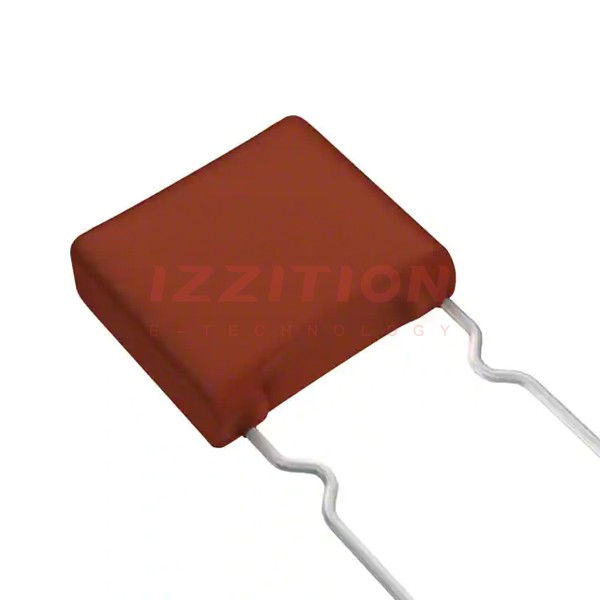

| Part Number | ECW-F2564JAB | ECW-F2564JAQ | ECW-F2565JAB | ECW-F2564JB | ECW-F2564HAB |
|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Obsolete | Active |
| Capacitance | 0.56 µF | 0.56 µF | 5.6 µF | 0.56 µF | 0.56 µF |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±3% |
| Voltage Rating - AC | - | 125V | - | - | - |
| Voltage Rating - DC | 250V | 250V | 250V | 250V | 250V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -25°C ~ 85°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.713" L x 0.272" W (18.10mm x 6.90mm) | 0.713" L x 0.272" W (18.10mm x 6.90mm) | 0.937" L x 0.638" W (23.80mm x 16.20mm) | 0.906" L x 0.335" W (23.00mm x 8.50mm) | 0.713" L x 0.272" W (18.10mm x 6.90mm) |
| Height - Seated (Max) | 0.705" (17.90mm) | 0.783" (19.90mm) | 1.118" (28.40mm) | 0.669" (17.00mm) | 0.705" (17.90mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.295" (7.50mm) | 0.591" (15.00mm) | 0.492" (12.50mm) | 0.787" (20.00mm) | 0.295" (7.50mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - | - |
| Features | - | - | - | - | - |
