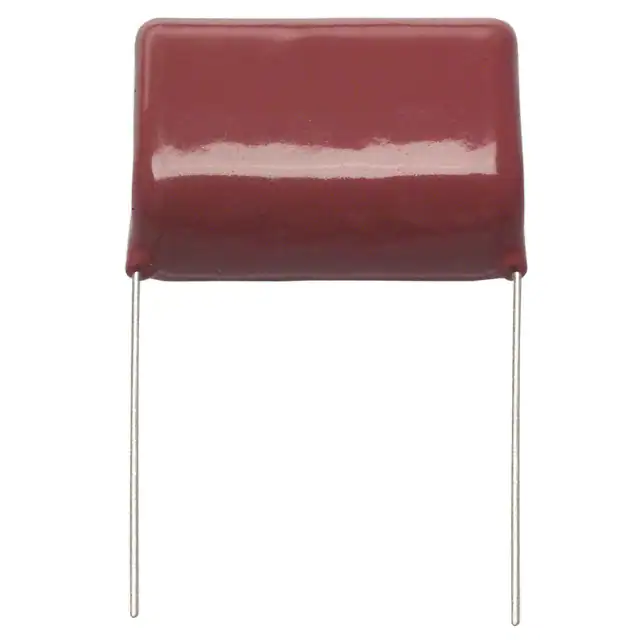

| Part Number | ECW-F2475JB | ECW-F2275JB | ECW-F2474JB | ECW-F2475JA | ECW-F2475JAB |
|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Active | Active |
| Capacitance | 4.7 µF | 2.7 µF | 0.47 µF | 4.7 µF | 4.7 µF |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | - | - | - | 125V | - |
| Voltage Rating - DC | 250V | 250V | 250V | 250V | 250V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 1.299" L x 0.709" W (33.00mm x 18.00mm) | 1.102" L x 0.610" W (28.00mm x 15.50mm) | 0.906" L x 0.315" W (23.00mm x 8.00mm) | 0.937" L x 0.583" W (23.80mm x 14.80mm) | 0.937" L x 0.583" W (23.80mm x 14.80mm) |
| Height - Seated (Max) | 1.122" (28.50mm) | 1.004" (25.50mm) | 0.650" (16.50mm) | 0.870" (22.10mm) | 1.067" (27.10mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 1.181" (30.00mm) | 0.984" (25.00mm) | 0.787" (20.00mm) | 0.787" (20.00mm) | 0.492" (12.50mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - | - |
| Features | - | - | - | - | - |
