Please send RFQ , we will respond immediately.

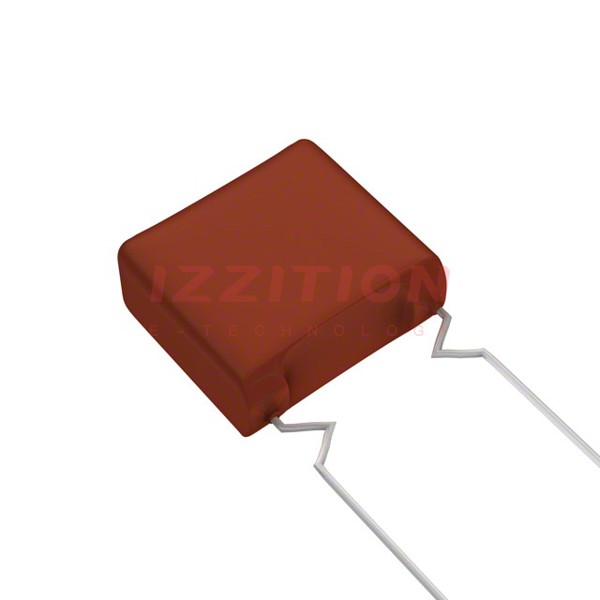

| Part Number | ECW-F2335HAQ | ECW-F2335JAQ | ECW-F2395HAQ | ECW-F2334HAQ | ECW-F2335HA | ECW-F2335HAB |
|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active |
| Capacitance | 3.3 µF | 3.3 µF | 3.9 µF | 0.33 µF | 3.3 µF | 3.3 µF |
| Tolerance | ±3% | ±5% | ±3% | ±3% | ±3% | ±3% |
| Voltage Rating - AC | - | - | - | - | - | - |
| Voltage Rating - DC | 250V | 250V | 250V | 250V | 250V | 250V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.937" L x 0.492" W (23.80mm x 12.50mm) | 0.937" L x 0.492" W (23.80mm x 12.50mm) | 0.937" L x 0.531" W (23.80mm x 13.50mm) | 0.512" L x 0.287" W (13.00mm x 7.30mm) | 0.937" L x 0.492" W (23.80mm x 12.50mm) | 0.937" L x 0.492" W (23.80mm x 12.50mm) |
| Height - Seated (Max) | 1.055" (26.80mm) | 1.055" (26.80mm) | 1.094" (27.80mm) | 0.705" (17.90mm) | 0.780" (19.80mm) | 0.976" (24.80mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.787" (20.00mm) | 0.787" (20.00mm) | 0.787" (20.00mm) | 0.394" (10.00mm) | 0.787" (20.00mm) | 0.492" (12.50mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - | - | - |
| Features | - | - | - | - | - | - |
