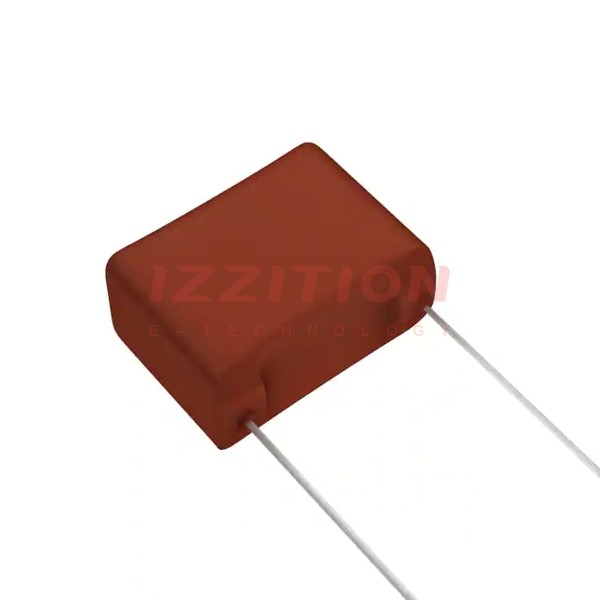

| Part Number | ECW-F2275JA | ECW-F2W275JA | ECW-F2475JA | ECW-F2275JAB | ECW-F2275JAQ | ECW-F2275JB | ECW-F2225JA | ECW-F2275HA |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Obsolete | Active | Active |
| Capacitance | 2.7 µF | 2.7 µF | 4.7 µF | 2.7 µF | 2.7 µF | 2.7 µF | 2.2 µF | 2.7 µF |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±3% |
| Voltage Rating - AC | 125V | 84V | 125V | - | 125V | - | 125V | - |
| Voltage Rating - DC | 250V | 450V | 250V | 250V | 250V | 250V | 250V | 250V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -25°C ~ 85°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.937" L x 0.449" W (23.80mm x 11.40mm) | 1.035" L x 0.417" W (26.30mm x 10.60mm) | 0.937" L x 0.583" W (23.80mm x 14.80mm) | 0.937" L x 0.449" W (23.80mm x 11.40mm) | 0.937" L x 0.449" W (23.80mm x 11.40mm) | 1.102" L x 0.610" W (28.00mm x 15.50mm) | 0.740" L x 0.496" W (18.80mm x 12.60mm) | 0.937" L x 0.449" W (23.80mm x 11.40mm) |
| Height - Seated (Max) | 0.736" (18.70mm) | 0.709" (18.00mm) | 0.870" (22.10mm) | 0.933" (23.70mm) | 1.012" (25.70mm) | 1.004" (25.50mm) | 0.752" (19.10mm) | 0.736" (18.70mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.787" (20.00mm) | 0.886" (22.50mm) | 0.787" (20.00mm) | 0.492" (12.50mm) | 0.787" (20.00mm) | 0.984" (25.00mm) | 0.591" (15.00mm) | 0.787" (20.00mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - |
