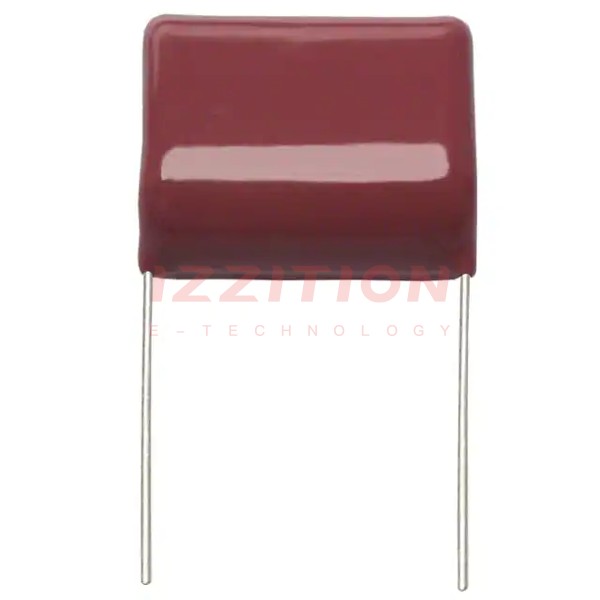

| Part Number | ECW-F2225JB | ECW-F2275JB | ECW-F2125JB | ECW-F2224JB | ECW-F2225JA | ECW-F2225JAB |
|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Active | Active |
| Capacitance | 2.2 µF | 2.7 µF | 1.2 µF | 0.22 µF | 2.2 µF | 2.2 µF |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | - | - | - | - | 125V | - |
| Voltage Rating - DC | 250V | 250V | 250V | 250V | 250V | 250V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 1.102" L x 0.551" W (28.00mm x 14.00mm) | 1.102" L x 0.610" W (28.00mm x 15.50mm) | 0.906" L x 0.492" W (23.00mm x 12.50mm) | 0.709" L x 0.276" W (18.00mm x 7.00mm) | 0.740" L x 0.496" W (18.80mm x 12.60mm) | 0.740" L x 0.496" W (18.80mm x 12.60mm) |
| Height - Seated (Max) | 0.945" (24.00mm) | 1.004" (25.50mm) | 0.827" (21.00mm) | 0.610" (15.50mm) | 0.752" (19.10mm) | 0.949" (24.10mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.984" (25.00mm) | 0.984" (25.00mm) | 0.787" (20.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.295" (7.50mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - | - | - |
| Features | - | - | - | - | - | - |
