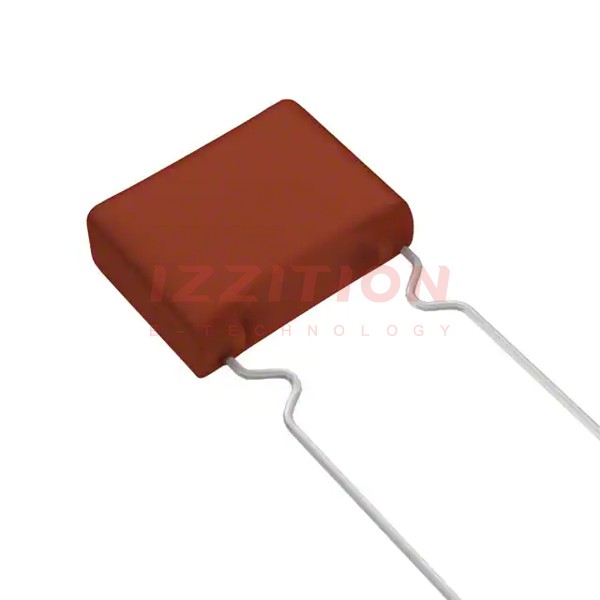

| Part Number | ECW-F2224HAB | ECW-F2224JAB | ECW-F2224HAQ | ECW-F2274HAB | ECW-F2225HAB | ECW-F2124HAB |
|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active |
| Capacitance | 0.22 µF | 0.22 µF | 0.22 µF | 0.27 µF | 2.2 µF | 0.12 µF |
| Tolerance | ±3% | ±5% | ±3% | ±3% | ±3% | ±3% |
| Voltage Rating - AC | - | - | - | - | - | - |
| Voltage Rating - DC | 250V | 250V | 250V | 250V | 250V | 250V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.512" L x 0.248" W (13.00mm x 6.30mm) | 0.512" L x 0.248" W (13.00mm x 6.30mm) | 0.512" L x 0.248" W (13.00mm x 6.30mm) | 0.512" L x 0.268" W (13.00mm x 6.80mm) | 0.740" L x 0.496" W (18.80mm x 12.60mm) | 0.512" L x 0.209" W (13.00mm x 5.30mm) |
| Height - Seated (Max) | 0.665" (16.90mm) | 0.665" (16.90mm) | 0.665" (16.90mm) | 0.685" (17.40mm) | 0.949" (24.10mm) | 0.626" (15.90mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.394" (10.00mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - | - | - |
| Features | - | - | - | - | - | - |
