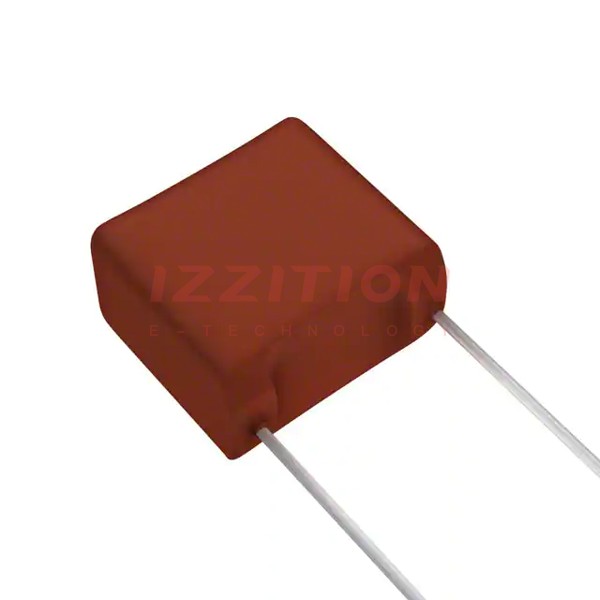

| Part Number | ECW-F2185JA | ECW-F2185JB | ECW-F2185JAQ | ECW-F2185JAB | ECW-F2185RJA | ECW-F2105JA | ECW-F2125JA | ECW-F2155JA | ECW-F2185HA |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Obsolete | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 1.8 µF | 1.8 µF | 1.8 µF | 1.8 µF | 1.8 µF | 1 µF | 1.2 µF | 1.5 µF | 1.8 µF |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±3% |
| Voltage Rating - AC | 125V | - | - | - | - | 125V | 125V | 125V | - |
| Voltage Rating - DC | 250V | 250V | 250V | 250V | 250V | 250V | 250V | 250V | 250V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -25°C ~ 85°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.740" L x 0.449" W (18.80mm x 11.40mm) | 1.102" L x 0.492" W (28.00mm x 12.50mm) | 0.740" L x 0.449" W (18.80mm x 11.40mm) | 0.740" L x 0.449" W (18.80mm x 11.40mm) | 0.740" L x 0.449" W (18.80mm x 11.40mm) | 0.713" L x 0.335" W (18.10mm x 8.50mm) | 0.740" L x 0.374" W (18.80mm x 9.50mm) | 0.740" L x 0.413" W (18.80mm x 10.50mm) | 0.740" L x 0.449" W (18.80mm x 11.40mm) |
| Height - Seated (Max) | 0.709" (18.00mm) | 0.886" (22.50mm) | 0.984" (25.00mm) | 0.906" (23.00mm) | 0.709" (18.00mm) | 0.583" (14.80mm) | 0.634" (16.10mm) | 0.673" (17.10mm) | 0.709" (18.00mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.591" (15.00mm) | 0.984" (25.00mm) | 0.591" (15.00mm) | 0.295" (7.50mm) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - | - |
