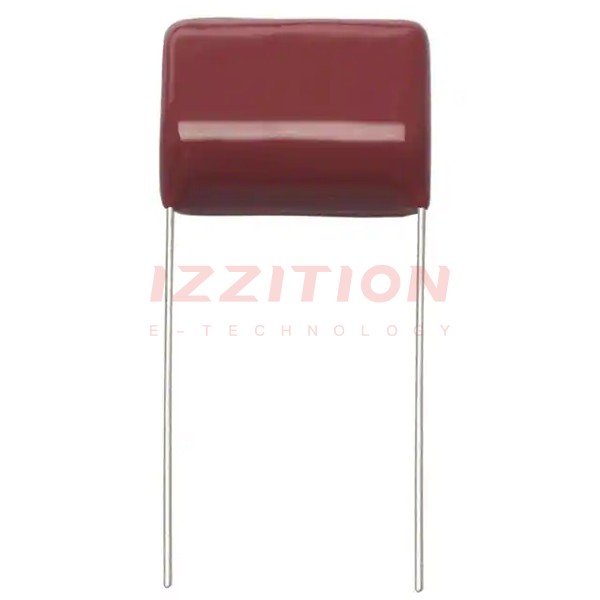

| Part Number | ECW-F2155JB | ECW-F2185JB | ECW-F2105JB | ECW-F2125JB | ECW-F2154JB | ECW-F2155JA | ECW-F2155JAB |
|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Active | Active |
| Capacitance | 1.5 µF | 1.8 µF | 1 µF | 1.2 µF | 0.15 µF | 1.5 µF | 1.5 µF |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | - | - | - | - | - | 125V | - |
| Voltage Rating - DC | 250V | 250V | 250V | 250V | 250V | 250V | 250V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.906" L x 0.551" W (23.00mm x 14.00mm) | 1.102" L x 0.492" W (28.00mm x 12.50mm) | 0.906" L x 0.453" W (23.00mm x 11.50mm) | 0.906" L x 0.492" W (23.00mm x 12.50mm) | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.740" L x 0.413" W (18.80mm x 10.50mm) | 0.740" L x 0.413" W (18.80mm x 10.50mm) |
| Height - Seated (Max) | 0.886" (22.50mm) | 0.886" (22.50mm) | 0.768" (19.50mm) | 0.827" (21.00mm) | 0.650" (16.50mm) | 0.673" (17.10mm) | 0.870" (22.10mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.787" (20.00mm) | 0.984" (25.00mm) | 0.787" (20.00mm) | 0.787" (20.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.295" (7.50mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - |
