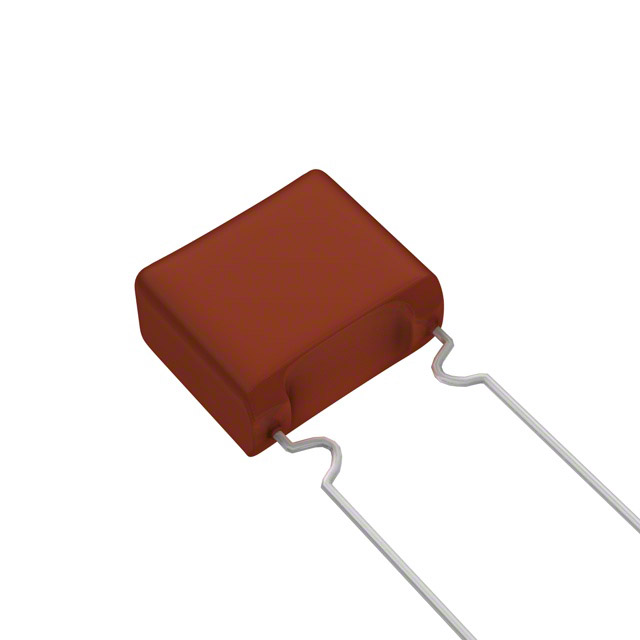

| Part Number | ECW-F2125JAB | ECW-F2125JAQ | ECW-F2155JAB | ECW-F2185JAB | ECW-F2225JAB | ECW-F2125JB | ECW-F2105JAB | ECW-F2124JAB | ECW-F2125HAB | ECW-F2125JA |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Obsolete | Active | Active | Active | Active |
| Capacitance | 1.2 µF | 1.2 µF | 1.5 µF | 1.8 µF | 2.2 µF | 1.2 µF | 1 µF | 0.12 µF | 1.2 µF | 1.2 µF |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±3% | ±5% |
| Voltage Rating - AC | - | - | - | - | - | - | - | - | - | 125V |
| Voltage Rating - DC | 250V | 250V | 250V | 250V | 250V | 250V | 250V | 250V | 250V | 250V |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -25°C ~ 85°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.740" L x 0.374" W (18.80mm x 9.50mm) | 0.740" L x 0.374" W (18.80mm x 9.50mm) | 0.740" L x 0.413" W (18.80mm x 10.50mm) | 0.740" L x 0.449" W (18.80mm x 11.40mm) | 0.740" L x 0.496" W (18.80mm x 12.60mm) | 0.906" L x 0.492" W (23.00mm x 12.50mm) | 0.713" L x 0.335" W (18.10mm x 8.50mm) | 0.512" L x 0.209" W (13.00mm x 5.30mm) | 0.740" L x 0.374" W (18.80mm x 9.50mm) | 0.740" L x 0.374" W (18.80mm x 9.50mm) |
| Height - Seated (Max) | 0.831" (21.10mm) | 0.909" (23.10mm) | 0.870" (22.10mm) | 0.906" (23.00mm) | 0.949" (24.10mm) | 0.827" (21.00mm) | 0.780" (19.80mm) | 0.626" (15.90mm) | 0.831" (21.10mm) | 0.634" (16.10mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.295" (7.50mm) | 0.591" (15.00mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.787" (20.00mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.591" (15.00mm) |
| Applications | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching | High Frequency, Switching |
| Ratings | - | - | - | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - | - | - | - |
