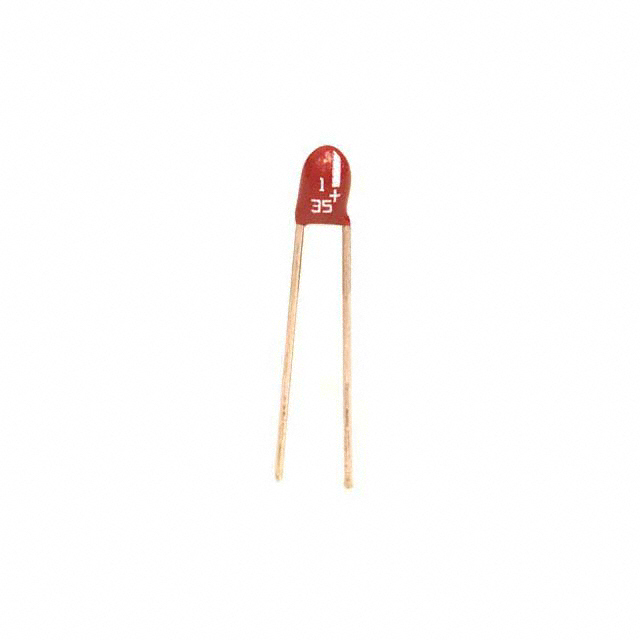

| Part Number | ECS-F1VE105K | ECS-F1VE155K | ECS-F1CE105K |
|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete |
| Capacitance | 1 µF | 1.5 µF | 1 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 35 V | 35 V | 16 V |
| Type | Conformal Coated | Conformal Coated | Conformal Coated |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Lifetime @ Temp. | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial |
| Size / Dimension | 0.138" Dia (3.50mm) | 0.138" Dia (3.50mm) | 0.130" Dia (3.30mm) |
| Height - Seated (Max) | 0.217" (5.50mm) | 0.217" (5.50mm) | 0.197" (5.00mm) |
| Lead Spacing | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) |
| Manufacturer Size Code | C | C | A |
| Ratings | - | - | - |
| Features | General Purpose | General Purpose | General Purpose |
| Failure Rate | - | - | - |
