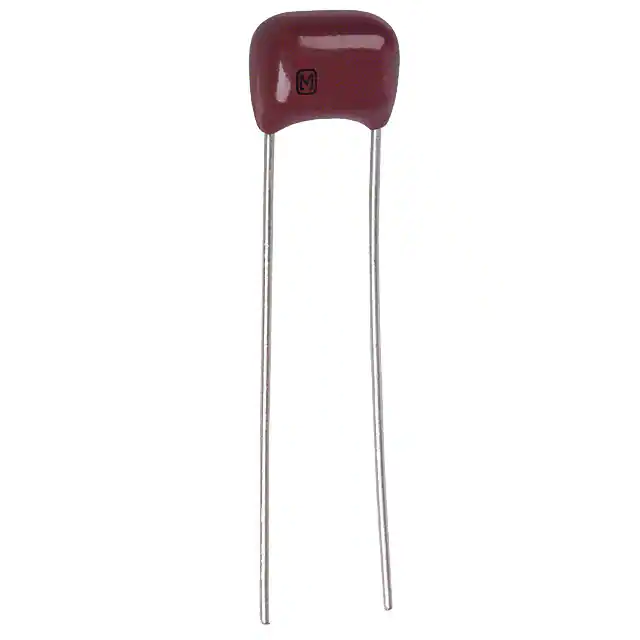

| Part Number | ECQ-V1H394JL | ECQ-V1H394JL3 | ECQ-V1H334JL | ECQ-V1H393JL |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 0.39 µF | 0.39 µF | 0.33 µF | 0.039 µF |
| Tolerance | ±5% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | - | - | - | - |
| Voltage Rating - DC | 50V | 50V | 50V | 50V |
| Dielectric Material | Polyester, Metallized - Stacked | Polyester, Metallized - Stacked | Polyester, Metallized - Stacked | Polyester, Metallized - Stacked |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.287" L x 0.224" W (7.30mm x 5.70mm) | 0.287" L x 0.224" W (7.30mm x 5.70mm) | 0.287" L x 0.205" W (7.30mm x 5.20mm) | 0.287" L x 0.126" W (7.30mm x 3.20mm) |
| Height - Seated (Max) | 0.327" (8.30mm) | 0.327" (8.30mm) | 0.315" (8.00mm) | 0.236" (6.00mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - |
| Features | - | - | - | - |
