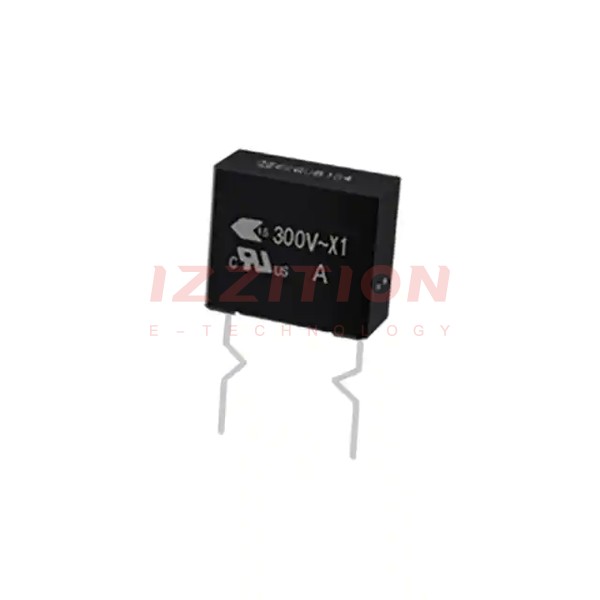

| Part Number | ECQ-UBAF473V6 | ECQ-UBAF473VG | ECQ-UBAF473VH | ECQ-UBAF473V2 |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active |
| Capacitance | 0.047 µF | 0.047 µF | 0.047 µF | 0.047 µF |
| Tolerance | ±10% | ±20% | ±10% | ±20% |
| Voltage Rating - AC | 300V | 300V | 300V | 300V |
| Voltage Rating - DC | - | - | - | - |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Operating Temperature | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.728" L x 0.276" W (18.50mm x 7.00mm) | 0.728" L x 0.276" W (18.50mm x 7.00mm) | 0.728" L x 0.276" W (18.50mm x 7.00mm) | 0.728" L x 0.276" W (18.50mm x 7.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) | 0.669" (17.00mm) | 0.669" (17.00mm) | 0.669" (17.00mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.492" (12.50mm) | 0.492" (12.50mm) | 0.492" (12.50mm) | 0.492" (12.50mm) |
| Applications | EMI, RFI Suppression | EMI, RFI Suppression | EMI, RFI Suppression | EMI, RFI Suppression |
| Ratings | X1 | X1 | X1 | X1 |
| Features | - | - | - | - |
