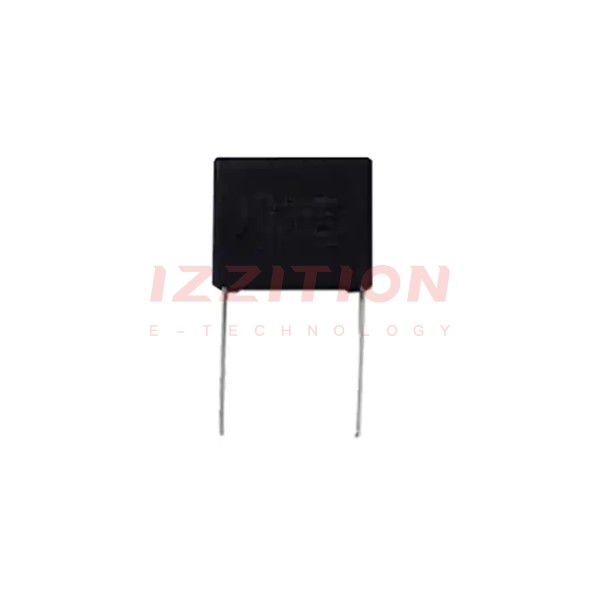

| Part Number | ECQ-UAAV224S1 | ECQ-UAAV274S1 | ECQ-UAAV824S1 | ECQ-UAAV224T1 | ECQ-UAAV224SA | ECQ-UAAV124S1 | ECQ-UAAV224Q1 | ECQ-UAAV224R1 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 0.22 µF | 0.27 µF | 0.82 µF | 0.22 µF | 0.22 µF | 0.12 µF | 0.22 µF | 0.22 µF |
| Tolerance | ±20% | ±20% | ±20% | ±10% | ±20% | ±20% | ±10% | ±20% |
| Voltage Rating - AC | 310V | 310V | 310V | 310V | 310V | 310V | 310V | 310V |
| Voltage Rating - DC | - | - | - | - | - | - | - | - |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.728" L x 0.315" W (18.50mm x 8.00mm) | 0.728" L x 0.354" W (18.50mm x 9.00mm) | 1.024" L x 0.551" W (26.00mm x 14.00mm) | 0.728" L x 0.315" W (18.50mm x 8.00mm) | 0.728" L x 0.315" W (18.50mm x 8.00mm) | 0.728" L x 0.315" W (18.50mm x 8.00mm) | 1.024" L x 0.276" W (26.00mm x 7.00mm) | 1.024" L x 0.276" W (26.00mm x 7.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) | 0.728" (18.50mm) | 0.846" (21.50mm) | 0.669" (17.00mm) | 0.669" (17.00mm) | 0.512" (13.00mm) | 0.571" (14.50mm) | 0.571" (14.50mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.886" (22.50mm) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.886" (22.50mm) | 0.886" (22.50mm) |
| Applications | Automotive; EMI, RFI Suppression | Automotive; EMI, RFI Suppression | Automotive; EMI, RFI Suppression | Automotive; EMI, RFI Suppression | Automotive; EMI, RFI Suppression | Automotive; EMI, RFI Suppression | Automotive; EMI, RFI Suppression | Automotive; EMI, RFI Suppression |
| Ratings | AEC-Q200, X2 | AEC-Q200, X2 | AEC-Q200, X2 | AEC-Q200, X2 | AEC-Q200, X2 | AEC-Q200, X2 | AEC-Q200, X2 | AEC-Q200, X2 |
| Features | - | - | - | - | - | - | - | - |
