Please send RFQ , we will respond immediately.

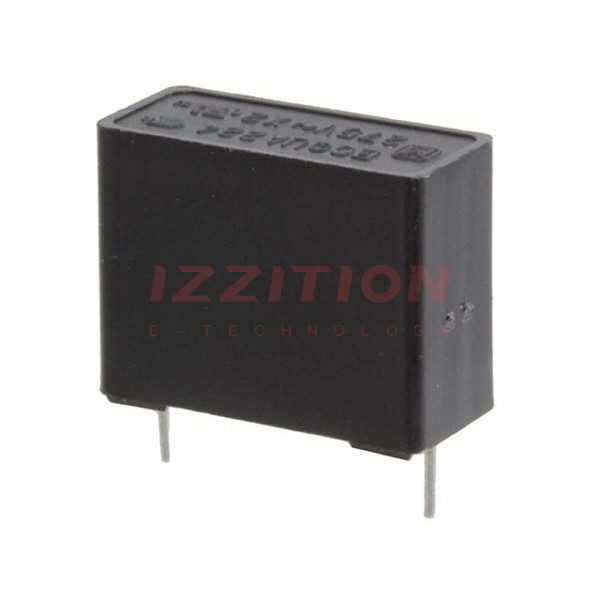

| Part Number | ECQ-UAAF334SA | ECQ-UAAF335SA | ECQ-UAAF334TA | ECQ-UAAF334S1 |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active |
| Capacitance | 0.33 µF | 3.3 µF | 0.33 µF | 0.33 µF |
| Tolerance | ±20% | ±20% | ±10% | ±20% |
| Voltage Rating - AC | 275V | 275V | 275V | 275V |
| Voltage Rating - DC | - | - | - | - |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Operating Temperature | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.689" L x 0.354" W (17.50mm x 9.00mm) | 1.220" L x 0.748" W (31.00mm x 19.00mm) | 0.689" L x 0.354" W (17.50mm x 9.00mm) | 0.689" L x 0.354" W (17.50mm x 9.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) | 1.161" (29.50mm) | 0.650" (16.50mm) | 0.650" (16.50mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.591" (15.00mm) | 1.083" (27.50mm) | 0.591" (15.00mm) | 0.591" (15.00mm) |
| Applications | Automotive; EMI, RFI Suppression | Automotive; EMI, RFI Suppression | Automotive; EMI, RFI Suppression | Automotive; EMI, RFI Suppression |
| Ratings | AEC-Q200, X2 | AEC-Q200, X2 | AEC-Q200, X2 | AEC-Q200, X2 |
| Features | - | - | - | - |
