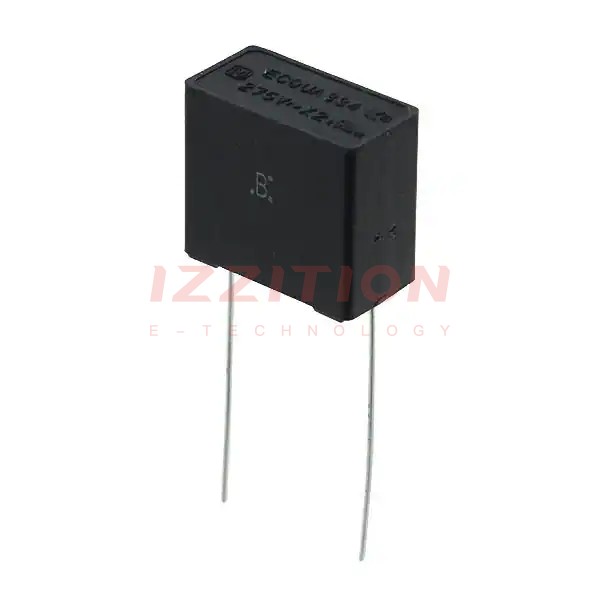

| Part Number | ECQ-UAAF334M | ECQ-UAAF335M | ECQ-UAAF394M | ECQ-UAAF333M | ECQ-UAAF334K |
|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 0.33 µF | 3.3 µF | 0.39 µF | 0.033 µF | 0.33 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±10% |
| Voltage Rating - AC | 275V | 275V | 275V | 275V | 275V |
| Voltage Rating - DC | - | - | - | - | - |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Operating Temperature | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.689" L x 0.354" W (17.50mm x 9.00mm) | 1.220" L x 0.748" W (31.00mm x 19.00mm) | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.602" L x 0.197" W (15.30mm x 5.00mm) | 0.689" L x 0.354" W (17.50mm x 9.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) | 1.161" (29.50mm) | 0.610" (15.50mm) | 0.472" (12.00mm) | 0.650" (16.50mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.591" (15.00mm) | 1.083" (27.50mm) | 0.886" (22.50mm) | 0.492" (12.50mm) | 0.591" (15.00mm) |
| Applications | EMI, RFI Suppression | EMI, RFI Suppression | EMI, RFI Suppression | EMI, RFI Suppression | EMI, RFI Suppression |
| Ratings | X2 | X2 | X2 | X2 | X2 |
| Features | - | - | - | - | - |
