Please send RFQ , we will respond immediately.

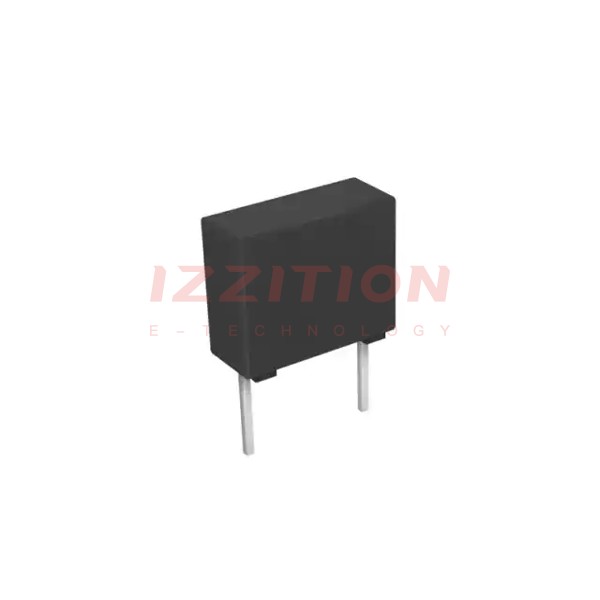

| Part Number | ECQ-UAAF105MA | ECQ-UAAF105SA | ECQ-UAAF105TA | ECQ-UAAF125MA | ECQ-UAAF185MA | ECQ-UAAF106MA | ECQ-UAAF103MA | ECQ-UAAF104MA | ECQ-UAAF105M |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 1 µF | 1 µF | 1 µF | 1.2 µF | 1.8 µF | 10 µF | 10000 pF | 0.1 µF | 1 µF |
| Tolerance | ±20% | ±20% | ±10% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage Rating - AC | 275V | 275V | 275V | 275V | 275V | 275V | 275V | 275V | 275V |
| Voltage Rating - DC | - | - | - | - | - | - | - | - | - |
| Dielectric Material | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 1.024" L x 0.472" W (26.00mm x 12.00mm) | 1.024" L x 0.472" W (26.00mm x 12.00mm) | 1.024" L x 0.472" W (26.00mm x 12.00mm) | 1.220" L x 0.472" W (31.00mm x 12.00mm) | 1.220" L x 0.571" W (31.00mm x 14.50mm) | 1.614" L x 1.102" W (41.00mm x 28.00mm) | 0.602" L x 0.197" W (15.30mm x 5.00mm) | 0.689" L x 0.197" W (17.50mm x 5.00mm) | 1.024" L x 0.472" W (26.00mm x 12.00mm) |
| Height - Seated (Max) | 0.768" (19.50mm) | 0.768" (19.50mm) | 0.768" (19.50mm) | 0.886" (22.50mm) | 0.984" (25.00mm) | 1.654" (42.00mm) | 0.472" (12.00mm) | 0.492" (12.50mm) | 0.768" (19.50mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.886" (22.50mm) | 0.886" (22.50mm) | 0.886" (22.50mm) | 1.083" (27.50mm) | 1.083" (27.50mm) | 1.476" (37.50mm) | 0.492" (12.50mm) | 0.591" (15.00mm) | 0.886" (22.50mm) |
| Applications | EMI, RFI Suppression | Automotive; EMI, RFI Suppression | Automotive; EMI, RFI Suppression | EMI, RFI Suppression | EMI, RFI Suppression | EMI, RFI Suppression | EMI, RFI Suppression | EMI, RFI Suppression | EMI, RFI Suppression |
| Ratings | X2 | AEC-Q200, X2 | AEC-Q200, X2 | X2 | X2 | X2 | X2 | X2 | X2 |
| Features | - | - | - | - | - | - | - | - | - |
