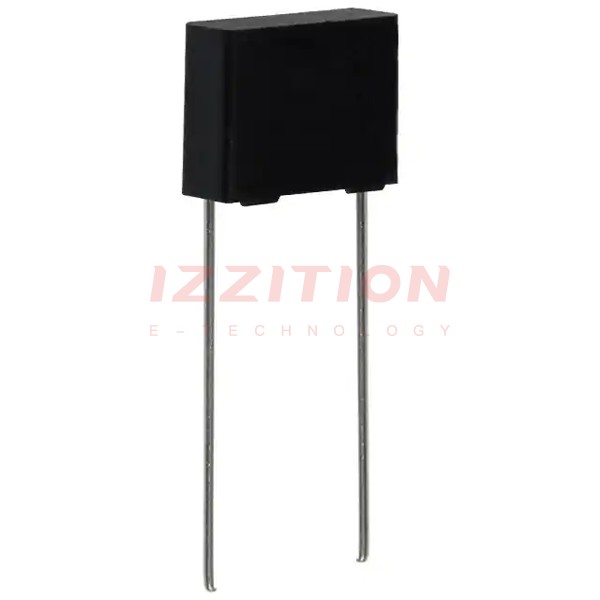

| Part Number | ECQ-U3A223MG | ECQ-U3A224MG |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete |
| Capacitance | 0.022 µF | 0.22 µF |
| Tolerance | ±20% | ±20% |
| Voltage Rating - AC | 300V | 300V |
| Voltage Rating - DC | - | - |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - |
| Operating Temperature | -40°C ~ 100°C | -40°C ~ 100°C |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial | Radial |
| Size / Dimension | 0.591" L x 0.197" W (15.00mm x 5.00mm) | 0.709" L x 0.354" W (18.00mm x 9.00mm) |
| Height - Seated (Max) | 0.472" (12.00mm) | 0.709" (18.00mm) |
| Termination | PC Pins | PC Pins |
| Lead Spacing | 0.492" (12.50mm) | 0.591" (15.00mm) |
| Applications | EMI, RFI Suppression | EMI, RFI Suppression |
| Ratings | X1 | X1 |
| Features | - | - |
