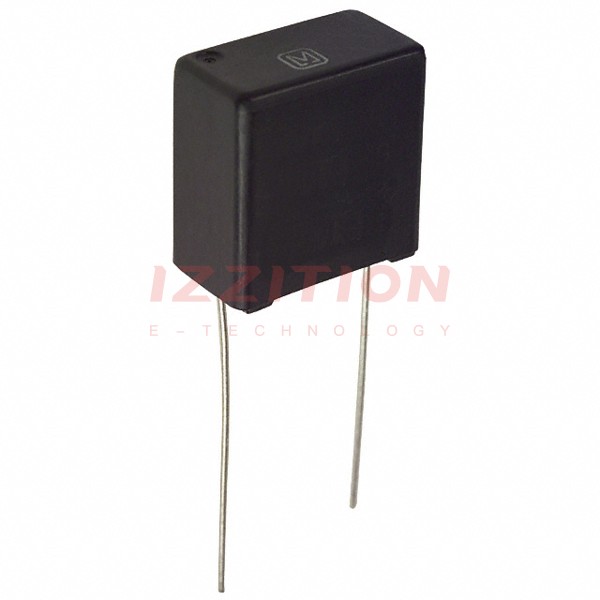

| Part Number | ECQ-U2A683MG | ECQ-U2A683MV | ECQ-U2A684MG | ECQ-U2A683ML | ECQ-U3A683MG |
|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 0.068 µF | 0.068 µF | 0.68 µF | 0.068 µF | 0.068 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage Rating - AC | 275V | 250V | 275V | 275V | 300V |
| Voltage Rating - DC | - | - | - | - | - |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Operating Temperature | -40°C ~ 100°C | -40°C ~ 85°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.591" L x 0.315" W (15.00mm x 8.00mm) | 0.689" L x 0.276" W (17.50mm x 7.00mm) | 1.004" L x 0.492" W (25.50mm x 12.50mm) | 0.689" L x 0.177" W (17.50mm x 4.50mm) | 0.591" L x 0.315" W (15.00mm x 8.00mm) |
| Height - Seated (Max) | 0.610" (15.50mm) | 0.571" (14.50mm) | 0.886" (22.50mm) | 0.472" (12.00mm) | 0.610" (15.50mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.492" (12.50mm) | 0.591" (15.00mm) | 0.886" (22.50mm) | 0.591" (15.00mm) | 0.492" (12.50mm) |
| Applications | EMI, RFI Suppression | EMI, RFI Suppression | EMI, RFI Suppression | EMI, RFI Suppression | EMI, RFI Suppression |
| Ratings | X2 | X2 | X2 | X2 | X1 |
| Features | - | - | - | - | - |
