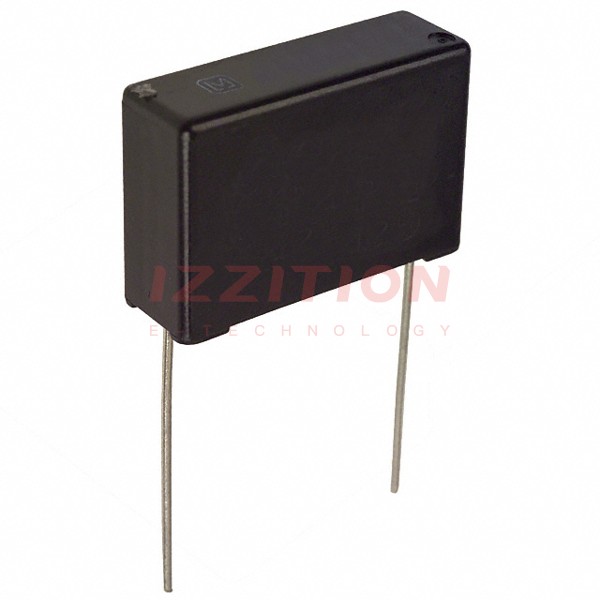

| Part Number | ECQ-U2A224MV | ECQ-U2A274MV | ECQ-U2A824MV | ECQ-U2A124MV | ECQ-U2A222MV | ECQ-U2A223MV | ECQ-U2A224MG | ECQ-U2A224ML |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 0.22 µF | 0.27 µF | 0.82 µF | 0.12 µF | 2200 pF | 0.022 µF | 0.22 µF | 0.22 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage Rating - AC | 250V | 250V | 250V | 250V | 250V | 250V | 275V | 275V |
| Voltage Rating - DC | - | - | - | - | - | - | - | - |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 100°C | -40°C ~ 100°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 1.004" L x 0.335" W (25.50mm x 8.50mm) | 1.201" L x 0.394" W (30.50mm x 10.00mm) | 1.201" L x 0.650" W (30.50mm x 16.50mm) | 1.004" L x 0.256" W (25.50mm x 6.50mm) | 0.689" L x 0.157" W (17.50mm x 4.00mm) | 0.689" L x 0.177" W (17.50mm x 4.50mm) | 0.689" L x 0.354" W (17.50mm x 9.00mm) | 0.689" L x 0.315" W (17.50mm x 8.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) | 0.728" (18.50mm) | 1.063" (27.00mm) | 0.669" (17.00mm) | 0.433" (11.00mm) | 0.433" (11.00mm) | 0.709" (18.00mm) | 0.650" (16.50mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.886" (22.50mm) | 1.083" (27.50mm) | 1.083" (27.50mm) | 0.886" (22.50mm) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) |
| Applications | EMI, RFI Suppression | EMI, RFI Suppression | EMI, RFI Suppression | EMI, RFI Suppression | EMI, RFI Suppression | EMI, RFI Suppression | EMI, RFI Suppression | EMI, RFI Suppression |
| Ratings | X2 | X2 | X2 | X2 | X2 | X2 | X2 | X2 |
| Features | - | - | - | - | - | - | - | - |
