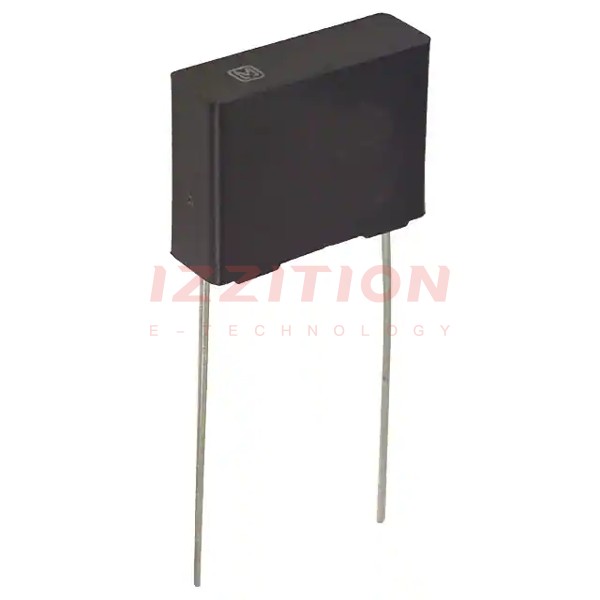

| Part Number | ECQ-U2A222ML | ECQ-U2A822ML | ECQ-U2A272ML | ECQ-U2A222MV | ECQ-U2A223ML | ECQ-U2A224ML | ECQ-U2A225ML | ECQ-U2A122ML |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 2200 pF | 8200 pF | 2700 pF | 2200 pF | 0.022 µF | 0.22 µF | 2.2 µF | 1200 pF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage Rating - AC | 275V | 275V | 275V | 250V | 275V | 275V | 275V | 275V |
| Voltage Rating - DC | - | - | - | - | - | - | - | - |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 85°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.591" L x 0.197" W (15.00mm x 5.00mm) | 0.591" L x 0.197" W (15.00mm x 5.00mm) | 0.591" L x 0.197" W (15.00mm x 5.00mm) | 0.689" L x 0.157" W (17.50mm x 4.00mm) | 0.591" L x 0.197" W (15.00mm x 5.00mm) | 0.689" L x 0.315" W (17.50mm x 8.00mm) | 1.201" L x 0.748" W (30.50mm x 19.00mm) | 0.591" L x 0.197" W (15.00mm x 5.00mm) |
| Height - Seated (Max) | 0.472" (12.00mm) | 0.472" (12.00mm) | 0.472" (12.00mm) | 0.433" (11.00mm) | 0.472" (12.00mm) | 0.650" (16.50mm) | 1.181" (30.00mm) | 0.472" (12.00mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.492" (12.50mm) | 0.492" (12.50mm) | 0.492" (12.50mm) | 0.591" (15.00mm) | 0.492" (12.50mm) | 0.591" (15.00mm) | 1.083" (27.50mm) | 0.492" (12.50mm) |
| Applications | EMI, RFI Suppression | EMI, RFI Suppression | EMI, RFI Suppression | EMI, RFI Suppression | EMI, RFI Suppression | EMI, RFI Suppression | EMI, RFI Suppression | EMI, RFI Suppression |
| Ratings | X2 | X2 | X2 | X2 | X2 | X2 | X2 | X2 |
| Features | - | - | - | - | - | - | - | - |
