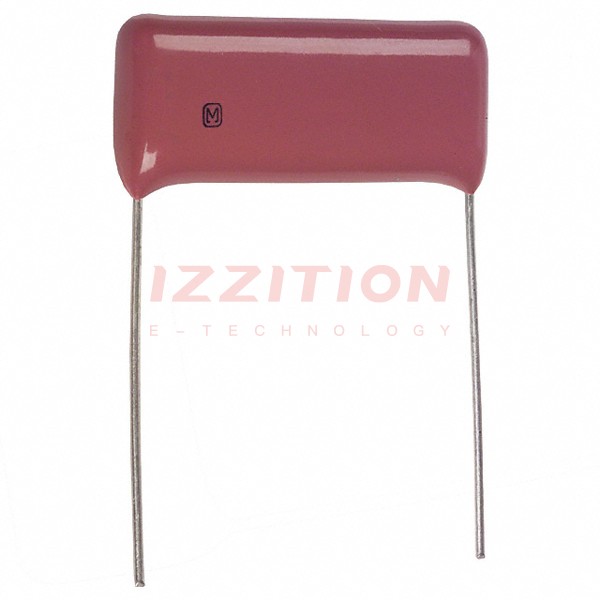

| Part Number | ECQ-U2A104MN | ECQ-U2A104MV | ECQ-U2A103MN | ECQ-U2A104MG | ECQ-U2A104ML |
|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 0.1 µF | 0.1 µF | 10000 pF | 0.1 µF | 0.1 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage Rating - AC | 250V | 250V | 250V | 275V | 275V |
| Voltage Rating - DC | - | - | - | - | - |
| Dielectric Material | Polyester | Polyester, Metallized | Polyester | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 100°C | -40°C ~ 100°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 1.201" L x 0.295" W (30.50mm x 7.50mm) | 0.689" L x 0.315" W (17.50mm x 8.00mm) | 0.669" L x 0.276" W (17.00mm x 7.00mm) | 0.591" L x 0.315" W (15.00mm x 8.00mm) | 0.689" L x 0.217" W (17.50mm x 5.50mm) |
| Height - Seated (Max) | 0.728" (18.50mm) | 0.610" (15.50mm) | 0.610" (15.50mm) | 0.610" (15.50mm) | 0.492" (12.50mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 1.043" (26.50mm) | 0.591" (15.00mm) | 0.531" (13.50mm) | 0.492" (12.50mm) | 0.591" (15.00mm) |
| Applications | EMI, RFI Suppression | EMI, RFI Suppression | EMI, RFI Suppression | EMI, RFI Suppression | EMI, RFI Suppression |
| Ratings | X2 | X2 | X2 | X2 | X2 |
| Features | - | - | - | - | - |
