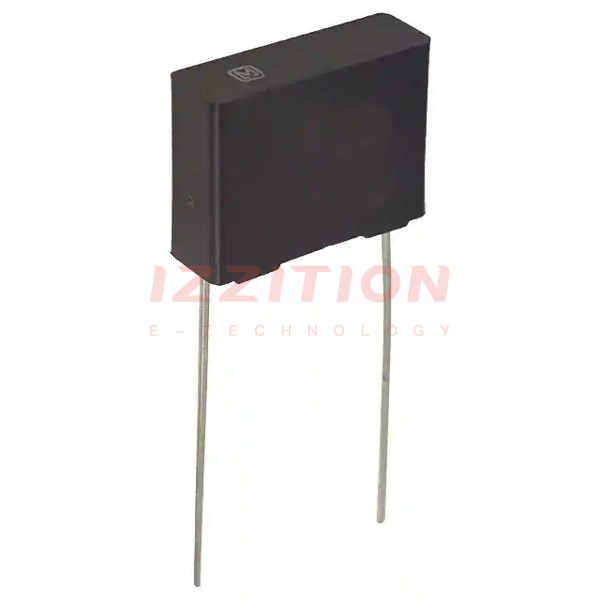

| Part Number | ECQ-U2A104ML2 | ECQ-U2A104ML |
|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete |
| Capacitance | 0.1 µF | 0.1 µF |
| Tolerance | ±20% | ±20% |
| Voltage Rating - AC | 275V | 275V |
| Voltage Rating - DC | - | - |
| Dielectric Material | Polyester, Metallized | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - | - |
| Operating Temperature | -40°C ~ 100°C | -40°C ~ 100°C |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial | Radial |
| Size / Dimension | 0.689" L x 0.217" W (17.50mm x 5.50mm) | 0.689" L x 0.217" W (17.50mm x 5.50mm) |
| Height - Seated (Max) | 0.512" (13.00mm) | 0.492" (12.50mm) |
| Termination | PC Pins | PC Pins |
| Lead Spacing | - | 0.591" (15.00mm) |
| Applications | EMI, RFI Suppression | EMI, RFI Suppression |
| Ratings | X2 | X2 |
| Features | - | - |
