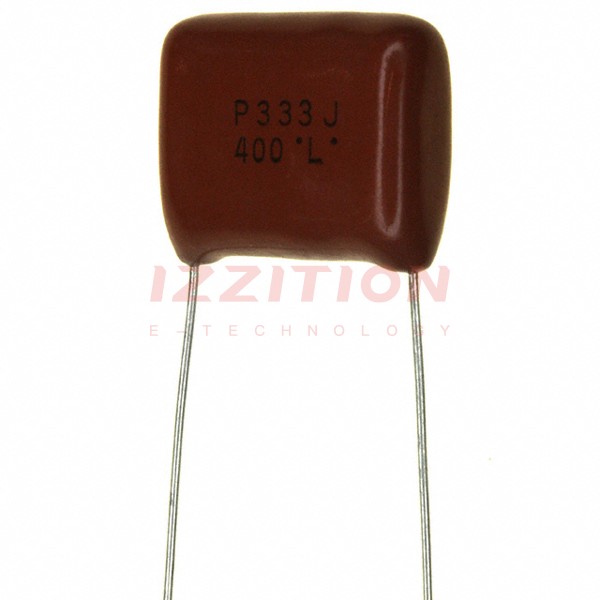

| Part Number | ECQ-P4333JU | ECQ-P4393JU | ECQ-P4334JU | ECQ-P6333JU |
|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 0.033 µF | 0.039 µF | 0.33 µF | 0.033 µF |
| Tolerance | ±5% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | - | - | - | - |
| Voltage Rating - DC | 400V | 400V | 400V | 630V |
| Dielectric Material | Polypropylene (PP) | Polypropylene (PP) | Polypropylene (PP) | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.768" L x 0.276" W (19.50mm x 7.00mm) | 0.768" L x 0.295" W (19.50mm x 7.50mm) | 1.161" L x 0.591" W (29.50mm x 15.00mm) | 0.965" L x 0.315" W (24.50mm x 8.00mm) |
| Height - Seated (Max) | 0.591" (15.00mm) | 0.630" (16.00mm) | 0.925" (23.50mm) | 0.650" (16.50mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.984" (25.00mm) | 0.787" (20.00mm) |
| Applications | High Frequency, Switching; High Pulse, DV/DT | High Frequency, Switching; High Pulse, DV/DT | High Frequency, Switching; High Pulse, DV/DT | High Frequency, Switching; High Pulse, DV/DT |
| Ratings | - | - | - | - |
| Features | - | - | - | - |
