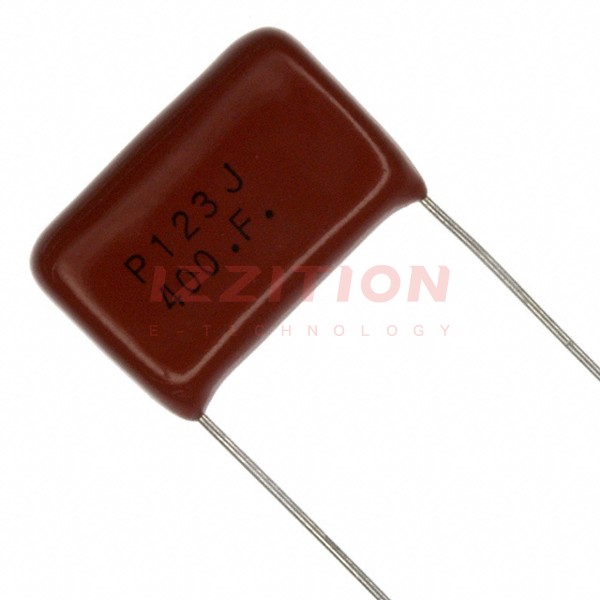

| Part Number | ECQ-P4123JU | ECQ-P4153JU | ECQ-P4183JU | ECQ-P4823JU | ECQ-P4124JU | ECQ-P6123JU | ECQ-P4103JU |
|---|---|---|---|---|---|---|---|
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 0.012 µF | 0.015 µF | 0.018 µF | 0.082 µF | 0.12 µF | 0.012 µF | 10000 pF |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Voltage Rating - AC | - | - | - | - | - | - | - |
| Voltage Rating - DC | 400V | 400V | 400V | 400V | 400V | 630V | 400V |
| Dielectric Material | Polypropylene (PP) | Polypropylene (PP) | Polypropylene (PP) | Polypropylene (PP) | Polypropylene (PP) | Polypropylene (PP) | Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.768" L x 0.256" W (19.50mm x 6.50mm) | 0.768" L x 0.236" W (19.50mm x 6.00mm) | 0.768" L x 0.236" W (19.50mm x 6.00mm) | 0.965" L x 0.335" W (24.50mm x 8.50mm) | 0.965" L x 0.394" W (24.50mm x 10.00mm) | 0.768" L x 0.256" W (19.50mm x 6.50mm) | 0.768" L x 0.256" W (19.50mm x 6.50mm) |
| Height - Seated (Max) | 0.532" (13.50mm) | 0.532" (13.50mm) | 0.532" (13.50mm) | 0.689" (17.50mm) | 0.748" (19.00mm) | 0.551" (14.00mm) | 0.453" (11.50mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.787" (20.00mm) | 0.787" (20.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) |
| Applications | High Frequency, Switching; High Pulse, DV/DT | High Frequency, Switching; High Pulse, DV/DT | High Frequency, Switching; High Pulse, DV/DT | High Frequency, Switching; High Pulse, DV/DT | High Frequency, Switching; High Pulse, DV/DT | High Frequency, Switching; High Pulse, DV/DT | High Frequency, Switching; High Pulse, DV/DT |
| Ratings | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - |
